Carburettor

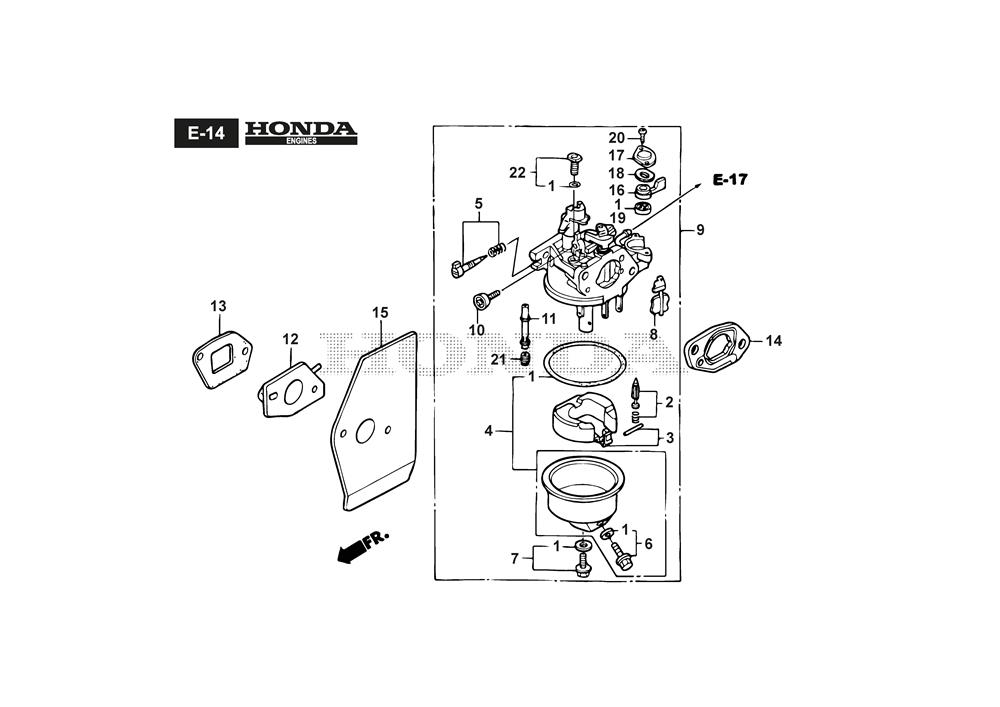

Carburettor assembly details for Stiga TWINCLIP 55 S H BBC - GXV 160 OHV (294568038/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002118551928/0VALVE SET, FLOAT£34.35 Add to
003118551929/0FLOAT SET£49.34 Add to
004118551935/0CHAMBER SET, FLOAT£54.79 Add to
007118551937/0SCREW SET£10.88 Add to
009118551655/0CARBURETOR ASSY. (BE66N A)£252.38 Add to
012118551944/0INSULATOR, CARBURETOR£17.45 Add to
013118551946/0PACKING, INSULATOR (NINGBO SIL GASKET)£4.52 Add to
014118551951/0SPACER COMP., CARBURETOR£8.73 Add to
015118551954/0PACKING, CARBURETOR (NINGBO SIL GASKET)£32.99 Add to
