Crankshaft/piston

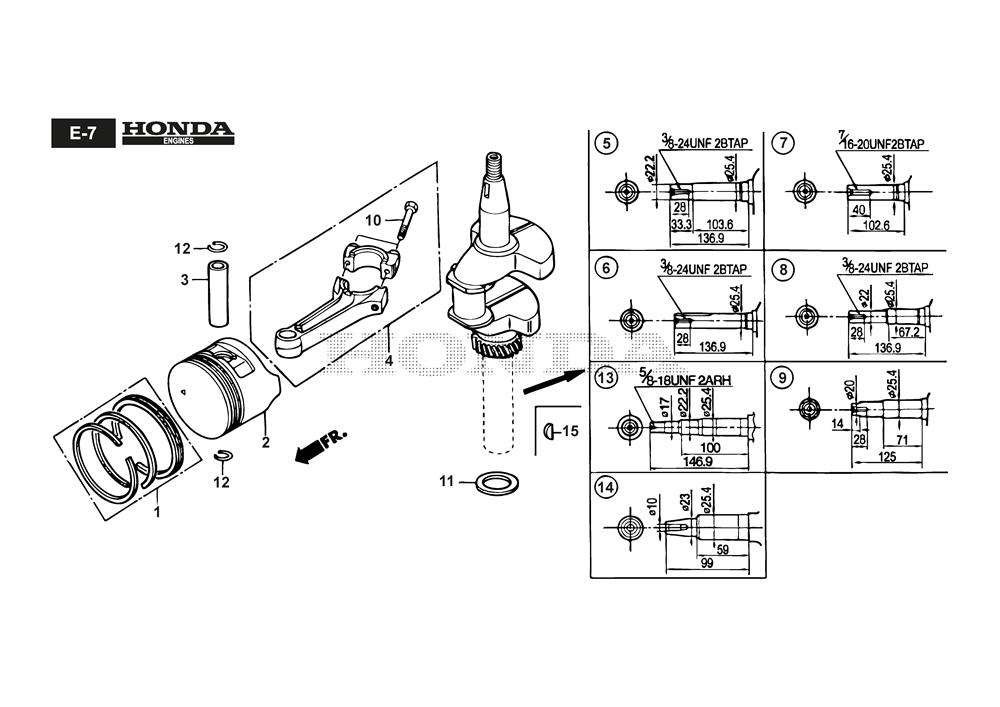

Crankshaft/piston assembly details for Stiga TWINCLIP 55 S H BBC - GXV 160 OHV (294568038/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551763/0RING SET, PISTON (STD.) (RIKEN)£84.77 Add to
003118551780/0PIN, PISTON£20.45 Add to
004118551793/0ROD ASSY., CONNECTING£163.80 Add to
005118551801/0CRANKSHAFT COMP.£572.61 Add to
011118552236/0WASHER, THRUST, 25.6MM£9.82 Add to
012118552242/0CLIP, PISTON PIN, 18MM£3.00 Add to
