Blade

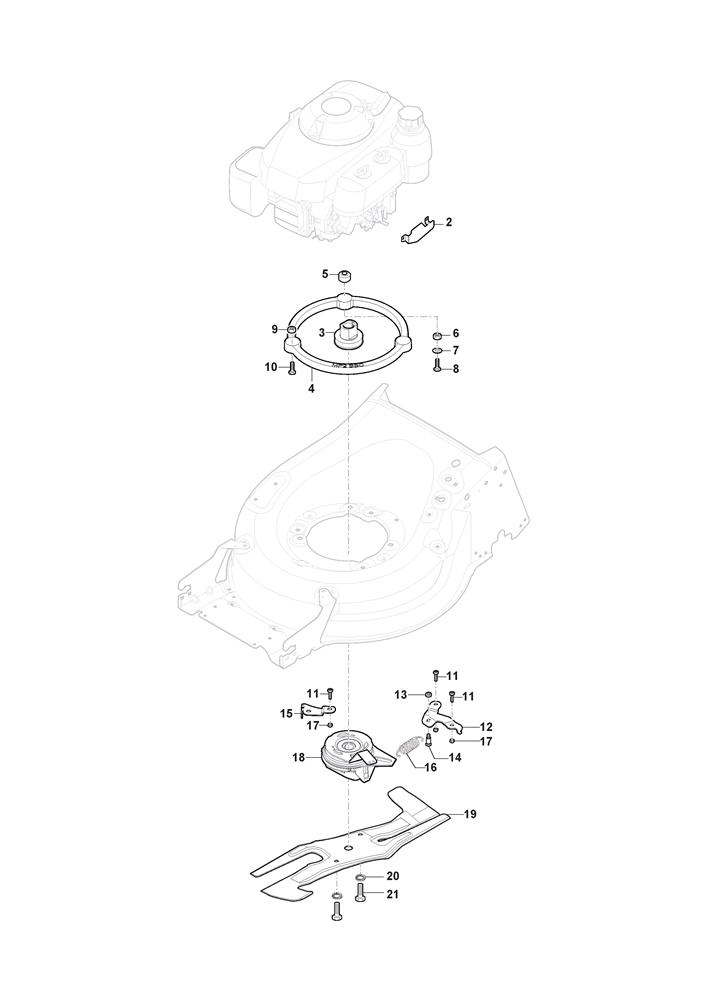

Blade assembly details for Stiga TWINCLIP 55 S-R H BBC - GXV 160 OHV (294569338/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002322546069/0PROTECTION PLATE£8.52 Add to
003122601935/0ENGINE PULLEY MP2 554 BBC£101.13 Add to
004322170966/0ENGINE SUPPORT RING MP2 554 BBC£4.23 Add to
005122170836/1ENGINE SPACER£8.44 Add to
007112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
008112691700/0SCREW M8 x 55£1.91 Add to
009112543002/0SPRING WASHER M8 C60£1.58 Add to
010112735601/0SCREW TE 5/16-24 x 1-3/4" UNF£2.06 Add to
011112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
012322551680/0PLATE CLUTCH ANTIROTATION BBC ZNB£9.82 Add to
014125580018/0TRANSMISSION BELT GUIDE PIN£4.52 Add to
015322551682/0CABLE HOOKING PLATE£7.63 Add to
016122450492/0BBC CLUTCH SPRING MP2£2.32 Add to
018118399076/0BBC BLADE CLUTCH MP2 554£340.96 Add to
019181004463/0MP2 55 BBC BLADE£78.59 Add to
020112540070/0EXTERNAL TOOTHED WASHER M10£2.06 Add to
021112794110/1SCREW TE M10 x 1.5 L=20£2.18 Add to
