Deck and height adjusting

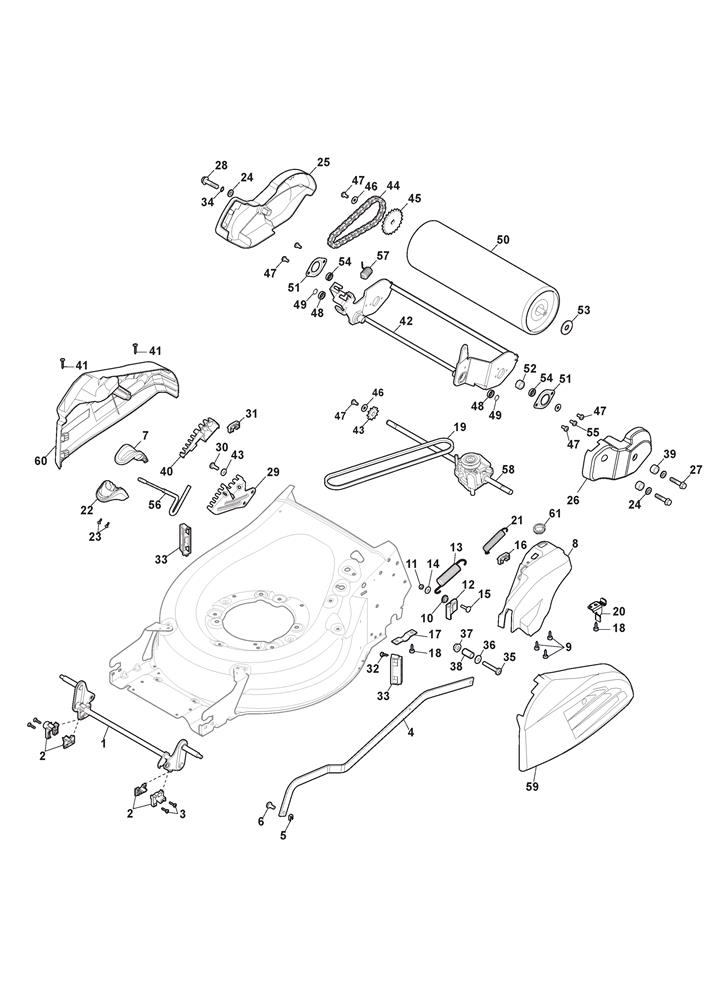

Deck and height adjusting assembly details for Stiga TWINCLIP 55 S-R H BBC - GXV 160 OHV (294569338/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302883/1ASS.FRONT AXLE WHEELS D200 CTF MP1 55£34.35 Add to
002322785305/1AXLE SUPPORT£3.00 Add to
004322869729/1HEIGHT ADJUST ROD CTF MP2 55 ROLLER BBC£47.97 Add to
005112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
006122519823/0WHEEL CONTROL ROD PIN£2.74 Add to
007322394541/0HEIGHT ADJUST KNOB£3.28 Add to
008322060304/0HEIGHT ADJUST COVER MP2 BBC [GREY]£15.54 Add to
009112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
010122517873/0BUSH£3.41 Add to
012322551683/0SPRING CLAMP£6.42 Add to
013122450480/0SPRING£2.32 Add to
014112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
016322038407/0AXLE U PLATE£2.06 Add to
017322545147/0AXLE PLATE£2.32 Add to
018112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
019135064100/0TRAPEZOIDAL BELT Z30£10.50 Add to
020322778489/0PLATE£4.18 Add to
021122450478/0SPRING£9.28 Add to
022322394537/0HEIGHT ADJUST KNOB£4.52 Add to
023112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
024112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
025322060272/2R/H ROLLER COVER MP2 50/55 [BLACK]£9.54 Add to
026322060274/1L/H ROLLER COVER MP2 55 [BLACK] - NLA£9.54 Add to
027112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
028112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
029322735605/0HEIGHT ADJUST QUADRANT£7.92 Add to
0309943-0516-16SCREW£2.40 Add to
031118737864/0FIXING PLATE D=9.5£1.79 Add to
032112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
033322546053/0PLATE£3.00 Add to
034119035002/0O RING 5.28 x 1.78£2.06 Add to
035112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
036122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
037112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
038122167840/0SPACER£2.06 Add to
039122170610/0SPACER (OBSOLETE) (OBSOLETE)N/A
040322570216/0HEIGHT ADJUST QUADRANT£5.87 Add to
041112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
042381302909/0ROLLER FRAME ASSEMBLY£109.10 Add to
0431111-3423-01SPROCKET 10T£15.13 Add to
0441111-3562-01ROLLER CHAIN (RIVETED)£20.45 Add to
0451111-3424-01SPROCKET 21T£18.28 Add to
046112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
047112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
048119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
049112608600/0CIRCLIP D=12£2.08 Add to
050381007405/0ROLLER ASSEMBLY [55-R]£293.25 Add to
051322207325/0BEARING SUPPORT PLATE£2.32 Add to
052122170820/0ROLLER SPACER£18.13 Add to
053112523100/0WASHER M12 14 x 36 x 3£2.06 Add to
054119216036/0BEARING 6201-2RS£9.96 Add to
055112735664/0SCREW M6 x 16£2.02 Add to
056322321551/0HEIGHT ADJUST LEVER£10.73 Add to
057122446194/0SPRING£3.83 Add to
058181003120/0GEARBOX£245.56 Add to
059322060306/0FIXED L/H ROLLER COVER MP2 55 [GREY]£12.96 Add to
060322060305/0FIXED R/H ROLLER COVER MP2 55 [GREY]£12.96 Add to
061118564526/0CLAMP RING£2.06 Add to
