Protection, Belt

Protection, Belt assembly details for Stiga TWINCLIP 55 SV H - GCV 170 A.C (294563038/ST1) 2020 model

Parts list

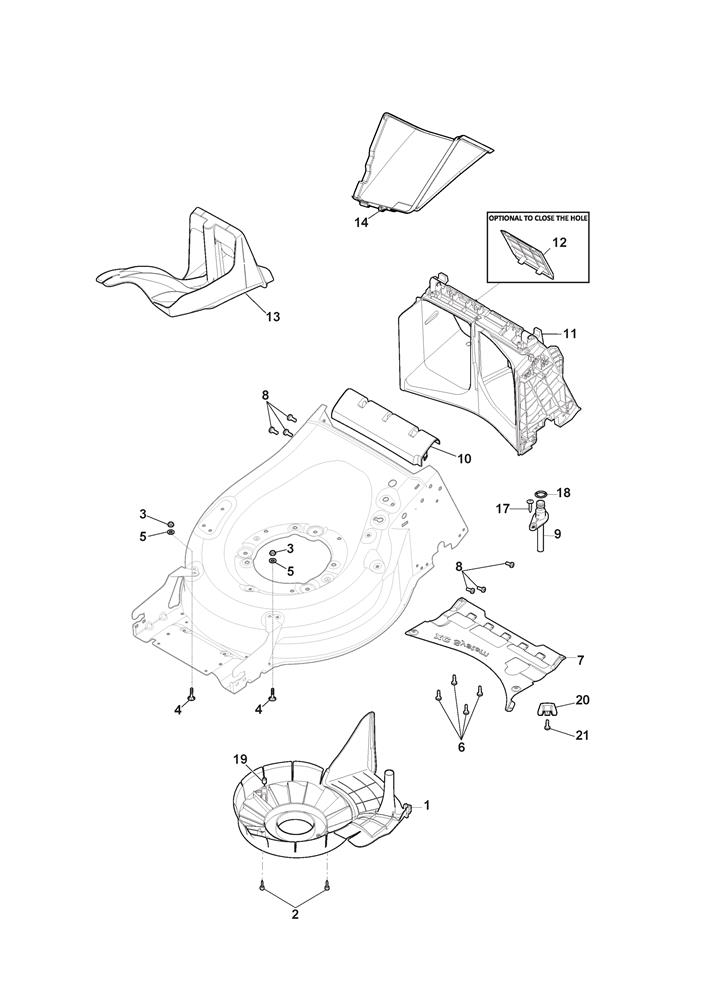

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322060271/2BELT PROTECTION GUARD [MP1 55]£24.81 Add to
002112735645/0SCREW TCB TORX M4 x 20£2.18 Add to
004112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
005112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
006112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
007322778497/0REAR LOWER COVER£19.62 Add to
008112735664/0SCREW M6 x 16£2.02 Add to
009322034006/0WASHING CONNECTION£7.36 Add to
010322109578/0DEFLECTOR SUPPORT [GREY] MP2£5.87 Add to
011381004825/0REAR BAFFLE [GREY]£143.37 Add to
012322600310/0REAR DOOR£5.46 Add to
013322140248/0MULCHING PLUG [MP2 554]£24.95 Add to
014322108319/0REAR BAFFLE PLATE£22.35 Add to
018119035000/0O RING 10.77 x 2.62£5.46 Add to
019122042073/0BELT GUARD BUSH MP1-MP2£2.06 Add to
020322943101/0SCREW INSERT MP2 50-55£2.18 Add to
021112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
