Protection, Belt

Protection, Belt assembly details for Stiga TWINCLIP 55 SVEQ H - GCVxe170 A.C. (294563538/ST1) 2020 model

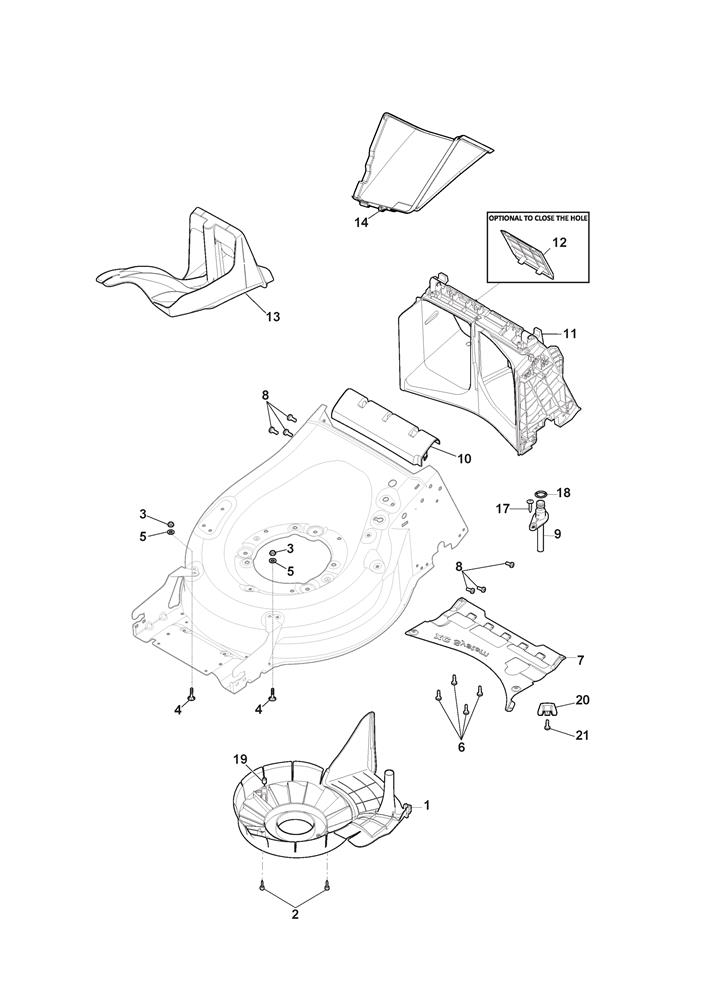

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322060271/2	BELT PROTECTION GUARD [MP1 55]	£24.81	Add to
002	112735645/0	SCREW TCB TORX M4 x 20	£2.18	Add to
004	112815206/0	SCREW M6 x 12 UNI5732 8.8 WHITE ZINC	£2.05	Add to
005	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
006	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
007	322778497/0	REAR LOWER COVER	£19.62	Add to
008	112735664/0	SCREW M6 x 16	£2.02	Add to
009	322034006/0	WASHING CONNECTION	£7.36	Add to
010	322109578/0	DEFLECTOR SUPPORT [GREY] MP2	£5.87	Add to
011	381004825/0	REAR BAFFLE [GREY]	£143.37	Add to
012	322600310/0	REAR DOOR	£5.46	Add to
013	322140248/0	MULCHING PLUG [MP2 554]	£24.95	Add to
014	322108319/0	REAR BAFFLE PLATE	£22.35	Add to
018	119035000/0	O RING 10.77 x 2.62	£5.46	Add to
019	122042073/0	BELT GUARD BUSH MP1-MP2	£2.06	Add to
020	322943101/0	SCREW INSERT MP2 50-55	£2.18	Add to
021	112728706/0	SELF-TAPPING SCREW K40 x 16	£2.06	Add to
