Deck

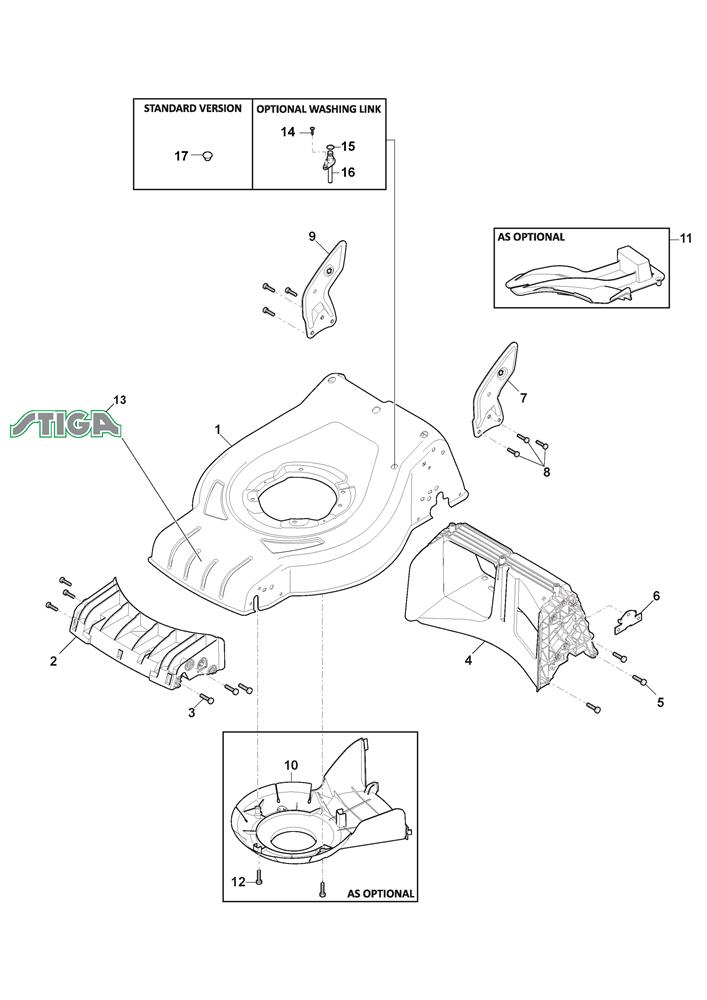

Deck assembly details for Stiga Combi 53 S (295536048/STX) 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381004935/1	CHASSIS CRC 53 GREY WRINKLED STIGA'19	£204.69	Add to
002	322108308/1	PLASTIC FRONT BAFFLE [CRUISER 53]	£14.45	Add to
003	112728904/0	SELF-TAPPING SCREW K60 X 22 WM1451	£1.95	Add to
004	322108392/0	PLASTIC REAR BAFFLE	£20.72	Add to
005	112728904/0	SELF-TAPPING SCREW K60 X 22 WM1451	£1.95	Add to
006	322545213/0	FIXING PLATE	£2.06	Add to
007	381005183/1	LH HANDLE BRACKET CR53 STIGA GREY WRIN.	£10.50	Add to
008	112727801/0	SCREW TCB TORX M6 x 20	£2.06	Add to
009	381005181/1	RH HANDLE BRACKET CR53 STIGA GREY WRIN.	£10.09	Add to
010	322060250/1	BELT PROTECTION GUARD [CR53]	£13.20	Add to
011	322140244/1	MULCHING PLUG [CRUISER 53]	£16.78	Add to
012	112728903/0	SCREW	£1.69	Add to
013	114367494/2	EMBLEMA LABEL STIGA 3D 93 x 19mm	£9.54	Add to
014	112728450/0	SELF-TAP SCREW 4.8 x 19	£2.81	Add to
015	119035000/0	O RING 10.77 x 2.62	£5.46	Add to
016	322034002/0	WASHING CONNECTION	£2.06	Add to
017	322820077/1	PVC DECK CAP	£2.06	Add to
