Height Adjusting

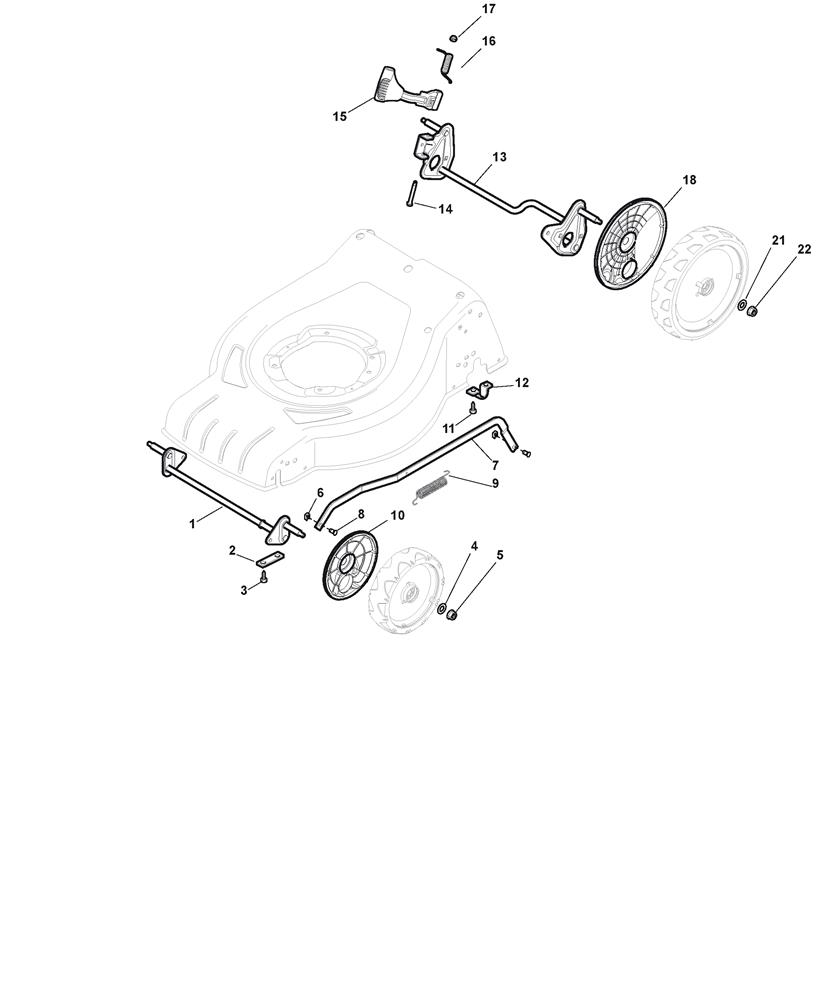

Height Adjusting assembly details for Stiga Combi 53 S (295536048/STX) 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381302853/1	ASS.FRONT AXLE WHEELS D200 CRUISER 53	£34.35	Add to
002	322545142/0	REAR WHEEL AXLE STOP PLATE	£2.06	Add to
003	112728714/0	SELF-TAP SCREW K50 x 20	£2.40	Add to
004	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
005	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
006	112436050/0	PIN PLATE D=8 (EUROFIX FX70308PH)	£1.83	Add to
007	322869679/1	WHEEL CONTROL ROD 200/280 BLACK CR 53	£26.18	Add to
008	122519823/0	WHEEL CONTROL ROD PIN	£2.74	Add to
009	122446193/0	SPRING	£4.99	Add to
010	322600145/0	INNER WHEEL COVER D=200	£2.06	Add to
011	112728714/0	SELF-TAP SCREW K50 x 20	£2.40	Add to
012	322545152/0	AXLE BRACKET	£2.06	Add to
013	381302849/1	ASS.REAR AXLE WHEELS D280 CRUISER 53 TR	£52.06	Add to
014	122534131/0	PIN	£2.06	Add to
015	381003458/1	HEIGHT ADJ.LEVER WHEELS D280 CRUISER	£11.18	Add to
015	381003459/1	HEIGHT ADJUST LEVER D=280 CR	£13.77	Add to
016	122446192/0	SPRING	£2.47	Add to
017	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
018	322600240/0	INNER WHEEL COVER D=280	£5.45	Add to
021	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
022	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
