Height Adjusting

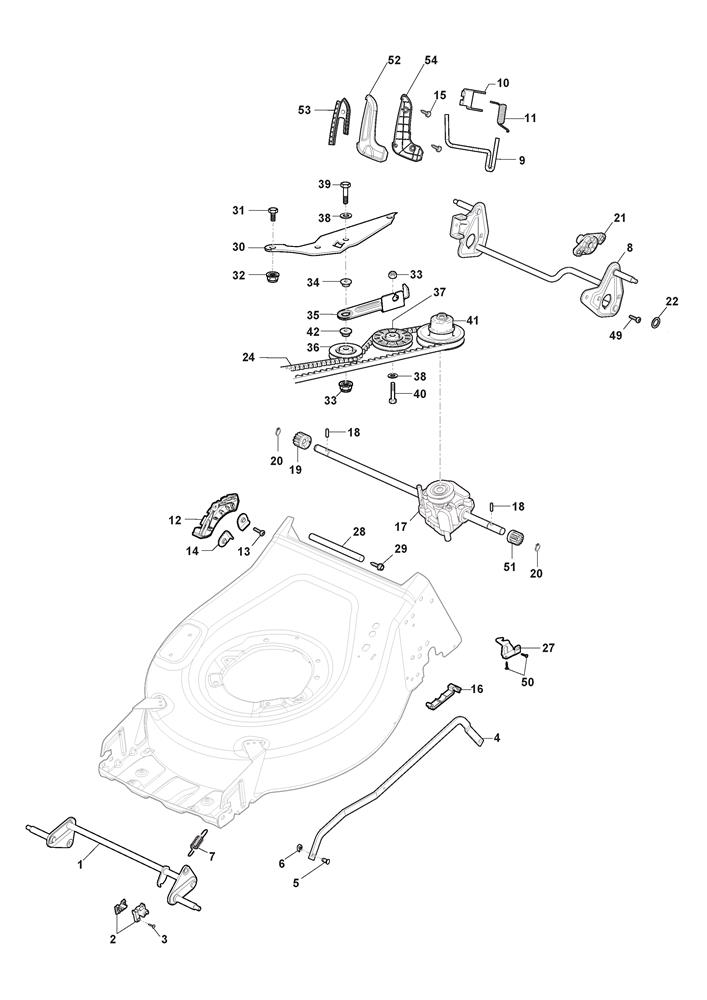

Height Adjusting assembly details for Stiga Combi 53 SVQ H (2L0537838/ST1) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302947/0FRONT WHEELS AXLE D=200 CP1 53£29.32 Add to
002322785305/1AXLE SUPPORT£3.00 Add to
003112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
004322869735/0WHEEL CONTROL ROD 200/280 BLACK CP1 53£16.10 Add to
005122519823/0WHEEL CONTROL ROD PIN£2.74 Add to
006112000930/0CIRCLIP D=6£0.79 Add to
007122450494/0SPRING£4.99 Add to
008381302849/1ASS.REAR AXLE WHEELS D280 CRUISER 53 TR£52.06 Add to
009322321555/3HEIGHT ADJUST LEVER CRL 53£3.69 Add to
010322557181/0REAR AXLE LEVER PLATE£2.47 Add to
011122446198/1HEIGHT ADJUST SPRING CRL£2.06 Add to
012322735608/0HEIGHT ADJUST QUADRANT CP1£2.47 Add to
013112727807/0SCREW TCB TORX M6 x 16£2.81 Add to
015112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
016322785500/0REAR AXLE SUPPORT CP 1£2.18 Add to
017181003116/0VARIATOR GEARBOX£173.63 Add to
018122753000/0PIN D=5.2 x 25.65£2.06 Add to
019122570133/0RIGHT PINION Z12 GEAR£7.92 Add to
020112608600/0CIRCLIP D=12£2.08 Add to
021322042067/0AXLE BUSH£4.52 Add to
022112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
024135064378/0TRAPEZOIDAL BELT XPZ LP=780£14.45 Add to
027322778477/1BRACKET FIX DRIVE ZNB MP150/55 GT FR.£4.52 Add to
028322608565/0REINFORCEMENT CHASSIS WHITE ZINC. CP1£7.92 Add to
029112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
030322806625/2SPEED VARIATOR LEVER SUPPORT WBH STEEL4S£5.61 Add to
031112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
032112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
033112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
034122671656/0WASHER£6.42 Add to
035322806623/0PULLEY SUPPORT BRACKET£4.52 Add to
036325601570/1BELT PULLEY£24.95 Add to
037122601914/0BELT GUIDE PULLEY£21.95 Add to
038122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
039112689500/0SCREW M6 x 40£2.06 Add to
040112674700/0SCREW M6 X 35£2.06 Add to
041122601932/0VARIATOR PULLEY£58.87 Add to
042122167708/0PULLEY SPACER£7.62 Add to
049112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
050112728904/0SELF-TAPPING SCREW K60 X 22 WM1451£1.95 Add to
051122570134/0LEFT PINION Z12 GEAR£7.92 Add to
052322394550/0UPPER HEIGHT ADJUST LEVER [BLACK]£3.00 Add to
053322394551/0HEIGHT ADJUST HANDGRIP [BLACK] CR£2.06 Add to
054322394559/0ERGO LOWER KNOB ADJ.REAR LEVER CR BLACK£2.47 Add to
055112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
