BODYWORK

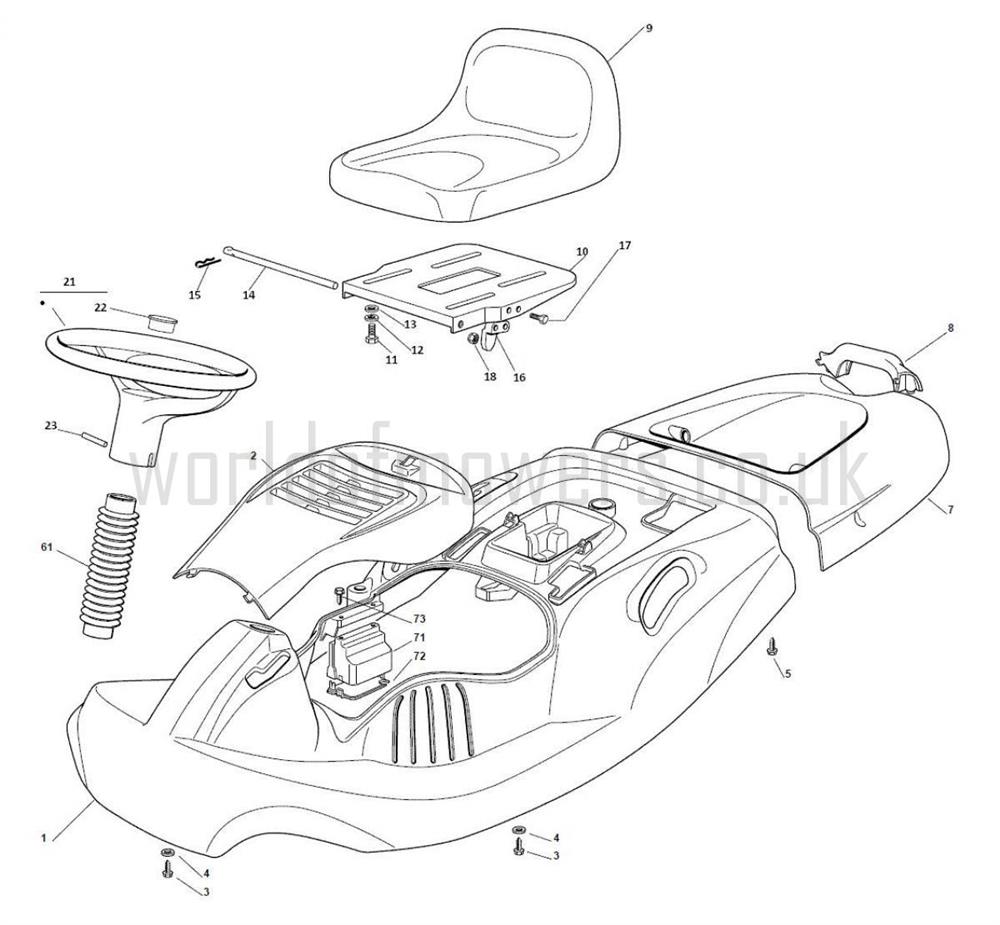

BODYWORK assembly details for Stiga 2T0030424/11 GARDEN SR 63 EV (Series 5500) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001327110397/0BLACK FIXED GRASSCATCHER COVER (RIDER)£152.86 Add to
002127110372/0ENGINE COVER STIGA£48.81 Add to
003112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
004112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
005112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
007327110398/0BLACK FIXED GRASSCATCHER COVER£65.69 Add to
008127394000/0GRASSCATCHER HANDLE£3.72 Add to
009125722470/0SEAT£170.61 Add to
010327546039/1SEAT SUPPORT PLATE£19.31 Add to
011112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
012112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
013112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
014127864052/1SEAT ROD£7.10 Add to
015124487997/0SPRING CLIP D=1.8£2.06 Add to
016327063021/1MICRO SEAT OPERATION CAM£2.74 Add to
017112789100/0HEX-HEAD SCREW M5 x 30£2.06 Add to
018112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
021127961230/0STEERING WHEEL£32.06 Add to
022325120230/0COVER£3.55 Add to
023112620305/0SPIROL PIN 6 x 55£1.91 Add to
061127600114/1STEERING GAITOR£9.28 Add to
071127600119/0PC BOARD UPPER GUARD£3.28 Add to
072127600118/0PC BOARD LOWER GUARD (OBSOLETE) (OBSOLETE)N/A
073112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
