BODYWORK

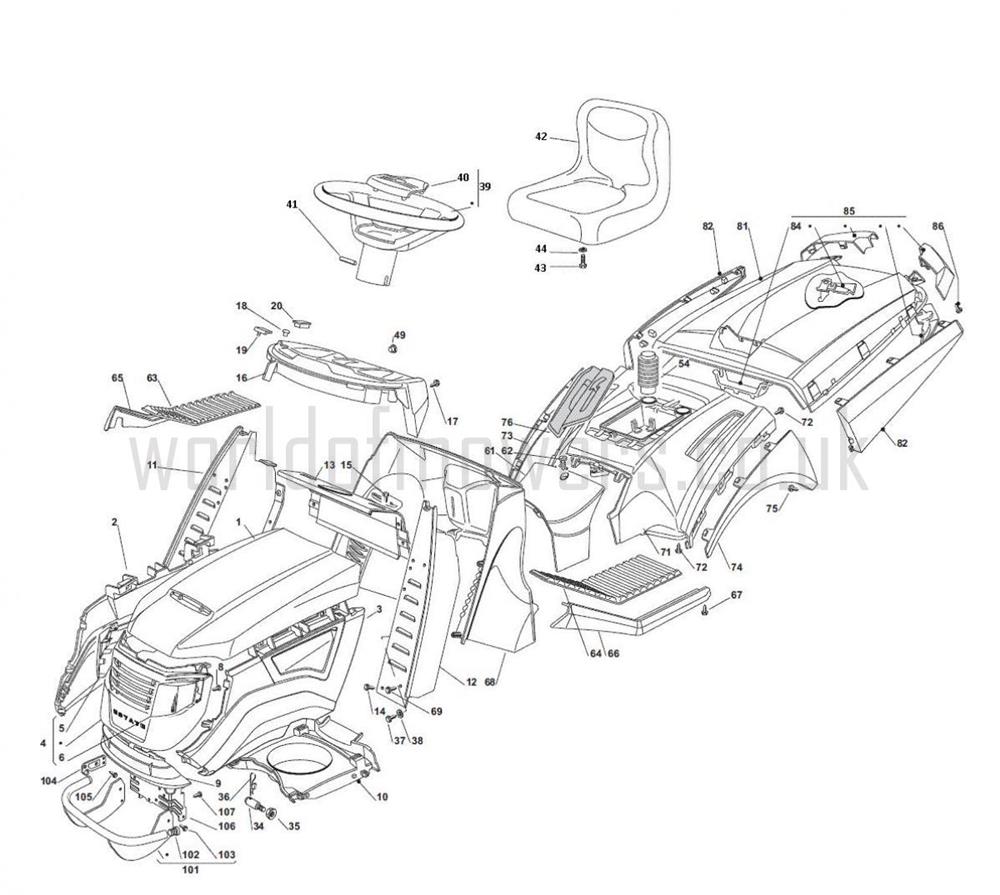

BODYWORK assembly details for Stiga 2T0950281/11 ESTATE ROYAL 19 (B&S 4185) 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076866/0UPPER ENGINE HOOD [YELLOW]£112.02 Add to
002382394611/0RH SIDE BONNET CMPL.ASSY JX-TCX S2009£87.07 Add to
003382394612/0LH SIDE BONNET CMPL.ASSY JX-TCX S£80.68 Add to
004382394610/0FRONT HOOD [GREY]£88.92 Add to
005325410876/0RIGHT HEADLIGHTS GRILL£9.14 Add to
006325410877/0LEFT HEADLIGHTS GRILL£9.14 Add to
008112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
009325076959/1LOWER FRONT BONNET [GREY]£18.74 Add to
010325108031/0INTAKE CONVEYOR£57.52 Add to
011382785022/8RIGHT DASHBOARD SUPPORT£31.63 Add to
012382785021/7LEFT DASHBOARD SUPPORT£31.63 Add to
013382785137/0CENTRAL DASHBOARD SUPPORT£16.16 Add to
014112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
015112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
016325120205/0DASHBOARD [BLACK]£27.34 Add to
017112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
018125120200/0CAP (OBSOLETE)£2.54 Add to
019125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
034125510068/0BONNET FULCRUM PIN£2.06 Add to
035112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
036124487998/0R CLIP D=2£2.06 Add to
037112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
038112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
039125961210/1BLACK COATED STEERING WHEEL TC£75.58 Add to
040325580501/0CENTRAL STEERING WHEEL CAP£6.69 Add to
041112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
042125722460/0COMFORT SEAT TCP VIKING£251.12 Add to
043112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
044112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
049325120233/0CAP (OBSOLETE)£4.28 Add to
054325737002/0PROTECTION COVER£6.01 Add to
061325110307/0CENTRAL COVER TCX HYDRO YELLOW 05/06£34.57 Add to
062125580020/2SPRING TENSIONED SCREW£7.23 Add to
063325110278/1R/H FOOTBOARD COVER [BLACK]£26.18 Add to
064325110279/0L/H FOOTBOARD COVER [BLACK]£26.18 Add to
065325599000/0RIGHT FOOTBOARD PROFILE [GREY]£15.81 Add to
066325599001/0LEFT FOOTBOARD PROFILE [GREY]£16.10 Add to
067112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
068325785231/1RED DASHBOARD SUPPORT TC HONDA 03/04£60.64 Add to
069112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
071325109754/1WHEELS COVER [YELLOW]£130.83 Add to
072112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
073325109753/0WHEELCOVER, RIGHT GREY TCX STIGA£20.72 Add to
074325109752/0WHEELCOVER, LEFT GREY TCX STIGA£20.72 Add to
075112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
076325207129/0CAN HOLDER COVER [BLACK]£24.34 Add to
081325110308/0GRASSCATCHER TOP [YELLOW]£170.61 Add to
082382110255/0PLASTIC COVERS FOR BAG, KIT£54.79 Add to
084325394009/0GRASSCATCHER HANDLE [BLACK]£8.32 Add to
085382110259/0LEFT/RIGHT ANGLE COVERS£34.60 Add to
086112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
101382869025/0FRONT BUMPER BAR£117.75 Add to
102118737860/0END CAP D=40£2.06 Add to
103112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
104325547159/1PLATE£5.05 Add to
105112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
106325774301/2HOOD SUPPORT£18.13 Add to
107112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
