Electrical parts

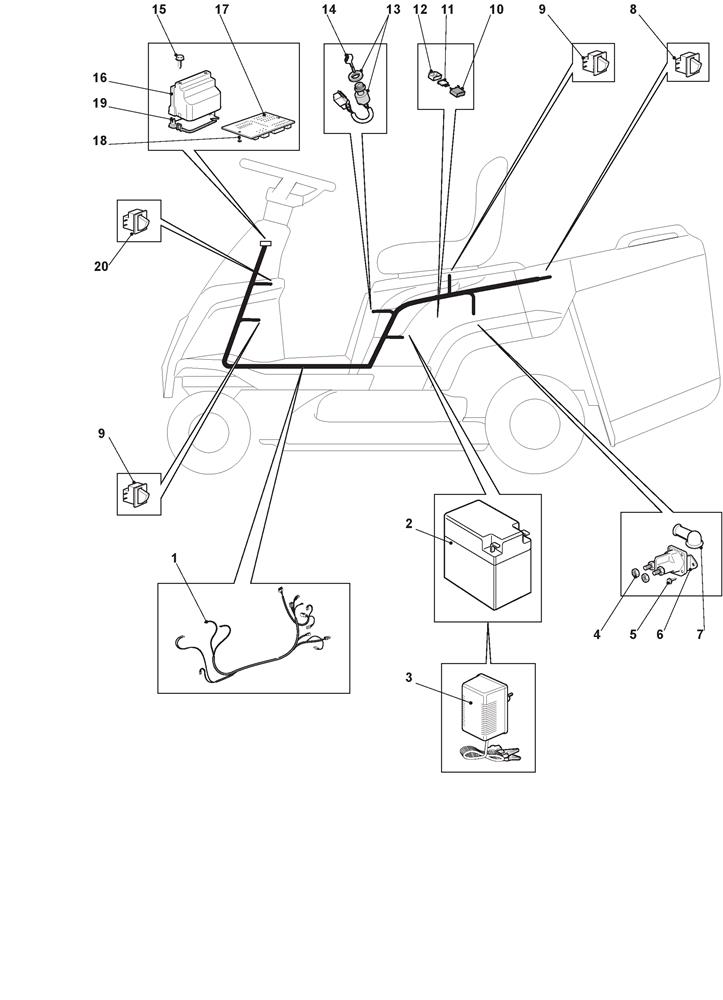

Electrical parts assembly details for Stiga COMBI 1066 H Stiga ST 250 ES rider 66 (2T0070481/16) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001184040132/0WIRING HARNESS NR66 EL£76.59 Add to
001184040132/1COMPLETE HARNESS NR66 EL.STARTN/A POA
001repla0000106WIRING LOOMN/A POA
001184040142/0WIRING LOOM MJ66N/A POA
002118120010/0BATTERY 12V 9AH [No Returns on This item]£69.74 Add to
002118120010/0BATTERY 12V 9AH [No Returns on This item]£69.74 Add to
003182180190/1BATTERY CHARGER£61.20 Add to
0049743-5121-32LOCK NUT 5/16"£1.79 Add to
005112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
006118736113/0SOLENOID£39.22 Add to
006118736113/0SOLENOID£39.22 Add to
007118564861/1RED RUBBER TERMINAL COVER£7.90 Add to
007118564861/2RED RUBBER TERMINAL COVER£7.10 Add to
008119410618/0MICRO SWITCH£5.19 Add to
008119410622/1MICRO SWITCH N.O.£7.10 Add to
009119410606/0MICROSWITCHN/A POA
009119410622/1MICRO SWITCH N.O.£7.10 Add to
009119410622/1MICRO SWITCH N.O.£7.10 Add to
010133500007/0FUSE HOLDER£7.64 Add to
011133340040/0FUSE 10A£2.47 Add to
012133215000/0FUSE HOLDER COVER£3.83 Add to
013118450075/1STARTING SWITCH£20.45 Add to
014118210023/0IGNITION KEY [PAIR]£6.29 Add to
015112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.06 Add to
015112728711/0SELF-TAPPING EJOT PT TORX WN1451 K40X18£1.79 Add to
016127600119/0PC BOARD UPPER GUARD£3.28 Add to
017127722354/0ELECTRONIC CARDN/A POA
017127722354/2PC BOARD No returns on this item£101.13 Add to
017127722359/1PC BOARD [MJ66][NO RETURNS ON THIS SPARE PART]£124.05 Add to
017127722359/1PC BOARD [MJ66][NO RETURNS ON THIS SPARE PART]£124.05 Add to
018112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
019127600118/0PC BOARD LOWER GUARD (OBSOLETE) (OBSOLETE)N/A
020119410614/0MICRO SWITCH N.C.£6.55 Add to
