Body

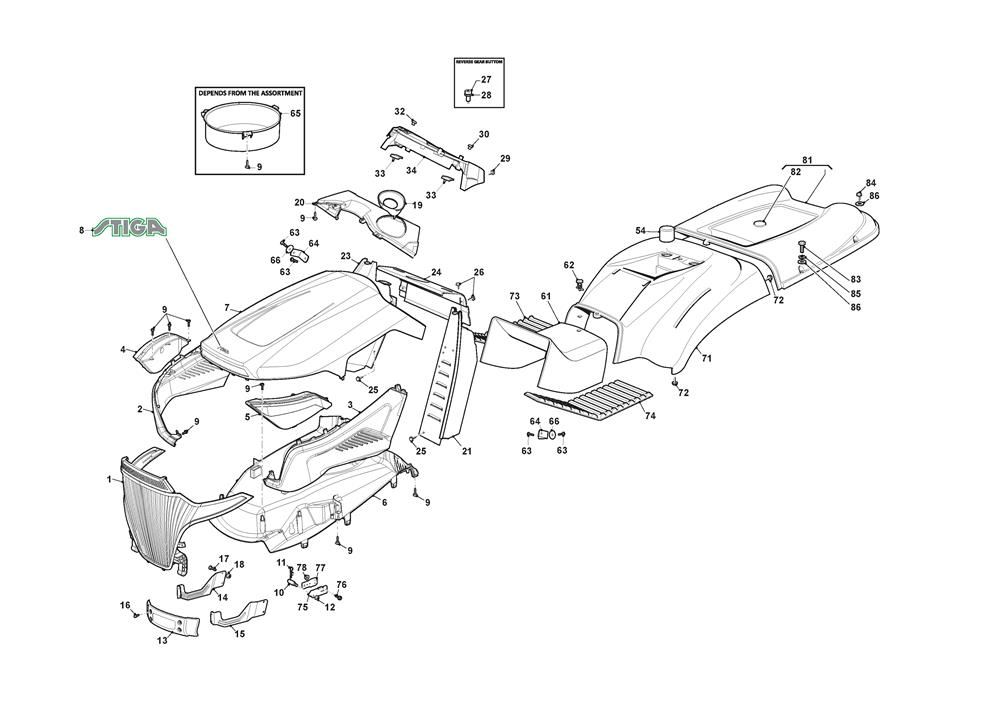

Body assembly details for Stiga Estate 6102 HWG (2T0980281/STX) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076981/0FRONT BONNET [BLACK] MTR SD£76.36 Add to
002325207270/0R/H BONNET SIDE MTR SD£62.98 Add to
003325207271/0L/H BONNET SIDE MTR SD£58.87 Add to
004382185508/0R/H LED HEADLIGHT£170.61 Add to
005382185509/0L/H LED HEADLIGHT£170.61 Add to
006325108100/1AIR INTAKE [YELLOW] TNS BONNET£75.23 Add to
007325076978/0UPPER BONNET [YELLOW] TNS£116.96 Add to
008114367495/1EMBLEM DECAL STIGA 3D 120 x 25mm£9.96 Add to
009112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
010125510068/0BONNET FULCRUM PIN£2.06 Add to
011124487998/0R CLIP D=2£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
013382263503/0FRONT BUMPER GUARD£28.90 Add to
014382785251/0R/H SUPPORT BUMPER£28.90 Add to
015382785253/0L/H SUPPORT BUMPER£28.90 Add to
016127943051/0SCREW D=6.3 x 13£2.18 Add to
017112800815/0SCREW TE FL M8 x 16£2.06 Add to
018112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
019325207272/0FUEL TANK COVER£7.63 Add to
020325598056/1EXTERNAL DASHBOARD C/W HOLE£27.79 Add to
021382785021/9LEFT DASHBOARD SUPPORT£41.16 Add to
023382785022/10RIGHT DASHBOARD SUPPORT£42.53 Add to
024382785137/1CENTRAL DASHBOARD SUPPORT£12.27 Add to
025112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
026112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
027325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
028325256250/0THREADED RING NUT£2.87 Add to
029112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
030325120233/0CAP (OBSOLETE)£4.28 Add to
032125120200/0CAP (OBSOLETE)£2.54 Add to
066112523030/0WASHER M5 5.5 x 20 x 1.6£2.06 Add to
078112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
085112582101/0WASHER M6£2.06 Add to
086112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
