Brake and Gearbox Control

Brake and Gearbox Control assembly details for Stiga Estate 6102 HWG (2T0980281/STX) 2018 model

Parts list

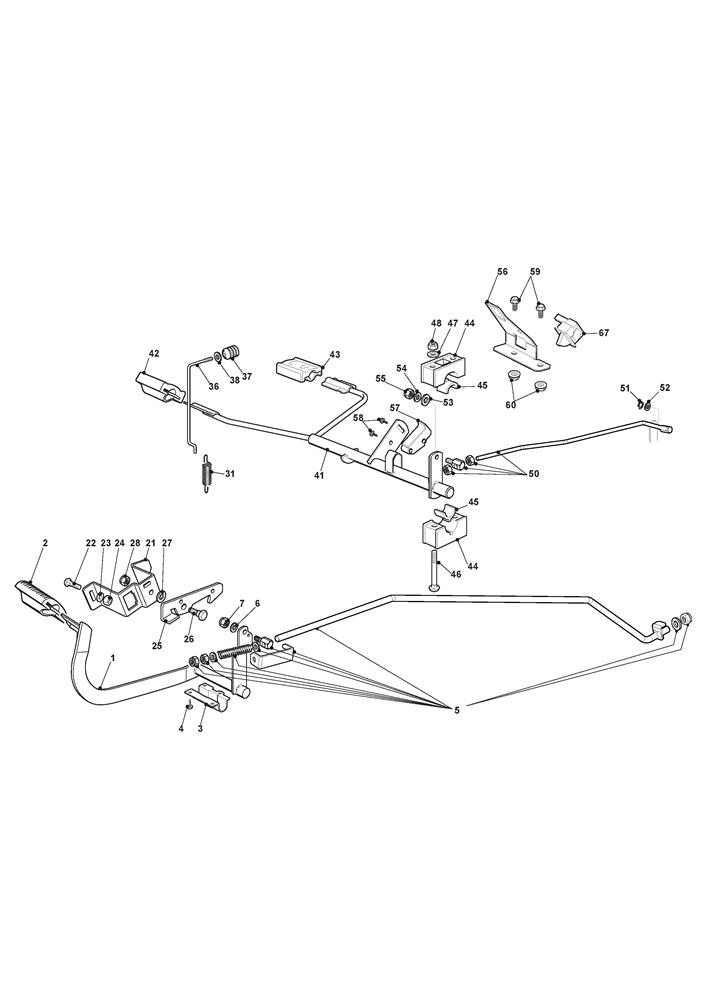

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
023112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
028112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
038112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
047112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
048112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
051112000940/0CIRCLIP D=7£2.06 Add to
053112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
054112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
055112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
056325785481/0MICRO SWITCH BRACKET [W/O CRUISE]£7.92 Add to
057325060034/1REVERSE SWITCH CAM£2.47 Add to
058112735404/0FLANGED HEX-HEAD SCREW D5 x 16 WZ£2.06 Add to
059112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
060112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
067119410623/0MICRO SWITCH N.C.£7.92 Add to
