Steering

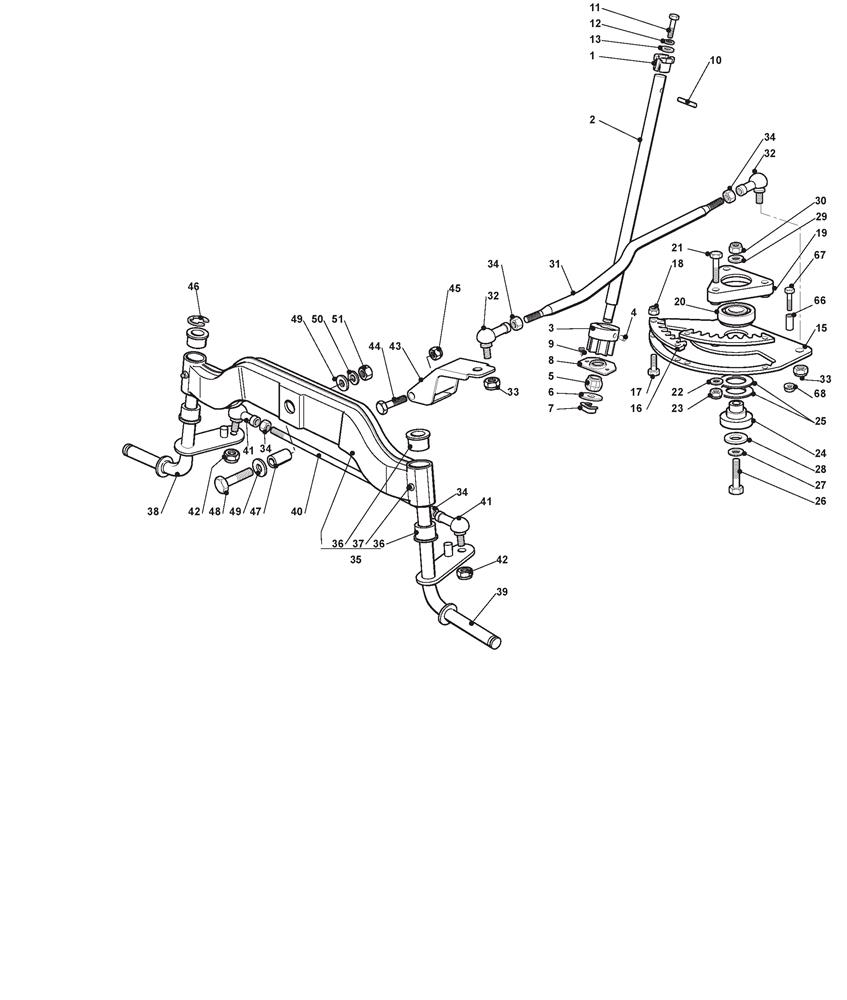

Steering assembly details for Stiga Estate 6102 HWG (2T0980281/STX) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
007112436030/0PIN PLATE£1.91 Add to
012112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
018112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
023112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
027112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
028112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
029112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
030112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
033112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
034112295201/0HEXAGON NUT M10£2.06 Add to
037112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
042112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
045112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
046112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
049112521390/0WASHER M16 17 x 30 x 3£1.91 Add to
050112587900/0WASHER£2.06 Add to
051112295800/0HEXAGON NUT£1.91 Add to
068112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
