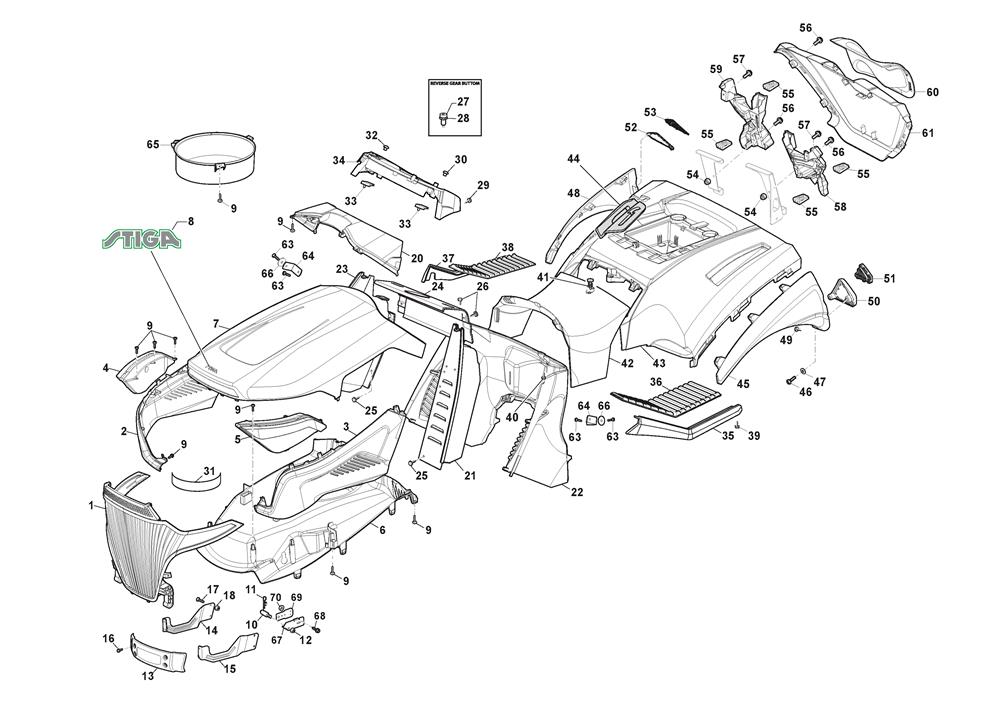

BODY assembly details for Stiga Tornado 7108 HWS (2T1845281/17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076981/0FRONT BONNET [BLACK] MTR SD£76.36 Add to
002325207270/0R/H BONNET SIDE MTR SD£62.98 Add to
003325207271/0L/H BONNET SIDE MTR SD£58.87 Add to
004382185508/0R/H LED HEADLIGHT£170.61 Add to
005382185509/0L/H LED HEADLIGHT£170.61 Add to
006325108100/1AIR INTAKE [YELLOW] TNS BONNET£75.23 Add to
007325076978/0UPPER BONNET [YELLOW] TNS£116.96 Add to
008114367495/1EMBLEM DECAL STIGA 3D 120 x 25mm£9.96 Add to
009112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
010125510068/0BONNET FULCRUM PIN£2.06 Add to
011124487998/0R CLIP D=2£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
013382263503/0FRONT BUMPER GUARD£28.90 Add to
014382785251/0R/H SUPPORT BUMPER£28.90 Add to
015382785253/0L/H SUPPORT BUMPER£28.90 Add to
016127943051/0SCREW D=6.3 x 13£2.18 Add to
017112800815/0SCREW TE FL M8 x 16£2.06 Add to
018112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
021382785021/9LEFT DASHBOARD SUPPORT£41.16 Add to
022325785449/0DASHBOARD SUPPORT [GREY]£76.59 Add to
023382785022/10RIGHT DASHBOARD SUPPORT£42.53 Add to
024382785137/1CENTRAL DASHBOARD SUPPORT£12.27 Add to
025112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
026112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
027325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
028325256250/0THREADED RING NUT£2.87 Add to
029112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
030325120233/0CAP (OBSOLETE)£4.28 Add to
031125730027/0SPONGE INTAKE SEPARATOR£9.00 Add to
032125120200/0CAP (OBSOLETE)£2.54 Add to
033125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
034325120269/0DASHBOARD [GREY] CRUISE CONTROL TX HE£43.89 Add to
035325599018/0L/H FOOTBOARD PROFILE [GREY]£17.07 Add to
036325110279/0L/H FOOTBOARD COVER [BLACK]£26.18 Add to
037325599017/0R/H FOOTBOARD PROFILE [GREY]£17.72 Add to
038325110278/1R/H FOOTBOARD COVER [BLACK]£26.18 Add to
039112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
040112735420/0FLANGED SCREW D=6 x 16£4.23 Add to
041125580020/2SPRING TENSIONED SCREW£7.23 Add to
042325110507/0CENTRAL COVER [GREY]£35.71 Add to
044325207129/1CAN HOLDER COVER [BLACK]£24.34 Add to
044325207129/1CAN HOLDER COVER [BLACK]£24.34 Add to
045325207267/0L/H REAR SIDE COVER [GREY]£21.26 Add to
046112728689/0SCREW KA50 x 12£1.79 Add to
047112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
048325207266/0R/H REAR SIDE COVER [GREY]£21.26 Add to
049112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
050325596502/0L/H REAR REFLECTOR SUPPORT£4.37 Add to
051325069101/0L/H REAR REFLECTOR [RED]£3.83 Add to
052325596501/0R/H REAR REFLECTOR SUPPORT£4.37 Add to
053325069100/0R/H REAR REFLECTOR [RED]£3.83 Add to
054112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
055112437507/0RAPID FIXING PLATE M6£2.06 Add to
0569893-0616-16SCREW M6 x 16£2.47 Add to
057112735420/0FLANGED SCREW D=6 x 16£4.23 Add to
058325785526/0L/H REAR COVER SUPPORT [BLACK]£13.77 Add to
060325207268/0REAR FUEL TANK COVER [BLACK]£15.41 Add to
061325110476/0REAR COVER [YELLOW] MTR SD£68.42 Add to
063112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
064325774703/0BRACKET£6.01 Add to
065325108101/0AIR INTAKE CONVEYOR L=60 [BLACK]£9.14 Add to
065325108102/0BLACK NS L=80 AIR INTAKE CONVEYOR£11.18 Add to
065325108103/0AIR INTAKE CONVEYOR L=40 [BLACK]£9.23 Add to
065325108104/0AIR INTAKE CONVEYOR L=23 [BLACK]£7.51 Add to
066112523030/0WASHER M5 5.5 x 20 x 1.6£2.06 Add to
067325774689/1FULCRUM BRACKET£7.10 Add to
068112815200/0SCREW TTDQ M6X16£2.06 Add to
069325774691/2FULCRUM BRACKET£5.05 Add to
070112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
