WHEELS

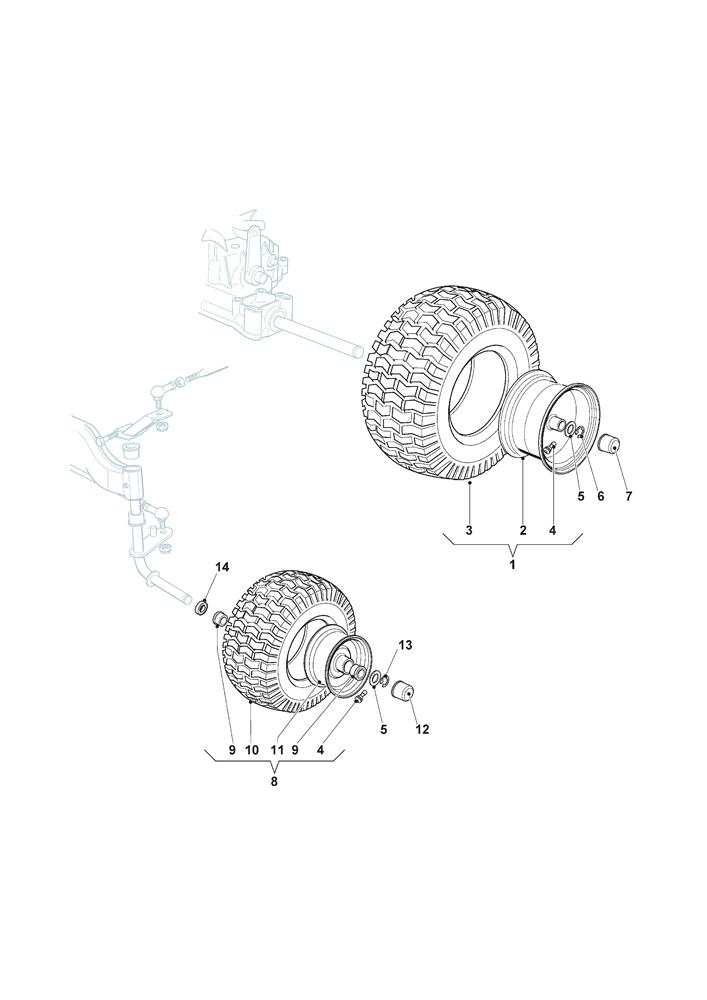

WHEELS assembly details for Stiga Tornado 7108 HWSY (2T1845281/ST1) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382680075/1WHEEL ASSEMBLY 20" [WANDA] P519B£252.38 Add to
002182001504/0REAR WHEEL RIM 6" x 10"£124.29 Add to
004125950000/0PNEUMATIC VALVE£5.73 Add to
005125670005/2SPINDLE WASHER£3.89 Add to
006112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
007322110240/0STIGA HUB COVER [BLACK]£1.91 Add to
008382680072/0WHEEL ASSEMBLY 15" [WANDA]£113.39 Add to
009125122200/2WHEEL BEARING D=20£12.05 Add to
010125590020/0TYRE 15 X 6.00-6 WANDA£65.62 Add to
011182001501/0FRONT WHEEL RIM 4" x 6"£54.79 Add to
012322110239/0STIGA HUB CAP [BLACK]£2.18 Add to
013112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
014125160094/0AXLE SPACER£6.55 Add to
