STEERING

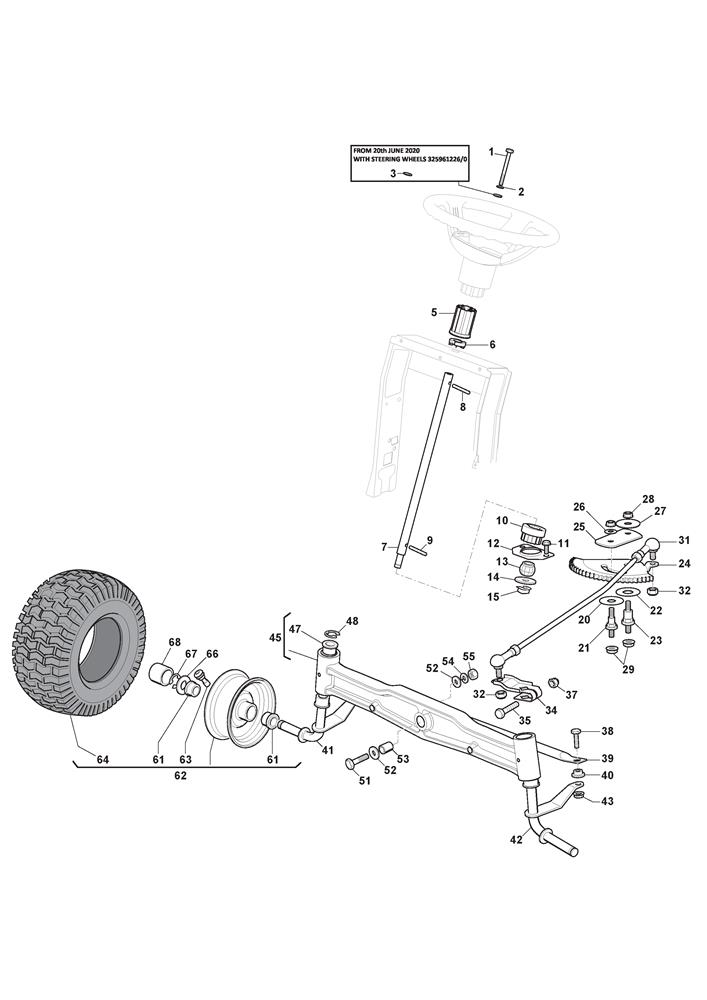

STEERING assembly details for Stiga Estate 2084 (2T2000481/ST2) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112692110/0HEX-HEAD SCREW M8 x 115 GB5787£2.87 Add to
002112540260/0INNER TOOTHED WASHER M8£2.06 Add to
003112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
005382785304/0STIGA STEERING SUPPORT HIGH£26.23 Add to
006325038008/0STEERING COLUMN BUSH£2.06 Add to
007125520018/0STEERING COLUMN SDR£22.52 Add to
008112620300/0SPIROL PIN 6 x 50£2.02 Add to
009112645710/0CYLINDRICAL PIN D=6 X 32£2.14 Add to
010125570003/0STEERING PINION£8.84 Add to
011127943051/0SCREW D=6.3 x 13£2.18 Add to
012325785213/1STEERING JOINT SUPPORT£2.32 Add to
013325743000/0JOINT£3.00 Add to
014112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
015112436030/0PIN PLATE£1.91 Add to
020322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
021125510173/0PIN BOLT£2.06 Add to
022125670023/0WASHER£1.91 Add to
023125510165/0PIN BOLT£5.06 Add to
024325735519/0QUADRANT PLATE£33.22 Add to
025325547233/0STEERING QUADRANT PLATE£3.83 Add to
026112369500/0SPRING WASHER D=8£1.79 Add to
027122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
028112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
029112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
031382000566/2STEERING WHEEL ROD£37.08 Add to
032112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
