KANZAKI TRANSAXLE K46S (S/N 0100680-9999999)

KANZAKI TRANSAXLE K46S (S/N 0100680-9999999) assembly details for Stiga Estate 5092 H (2T0440281/ST1) 2020 model

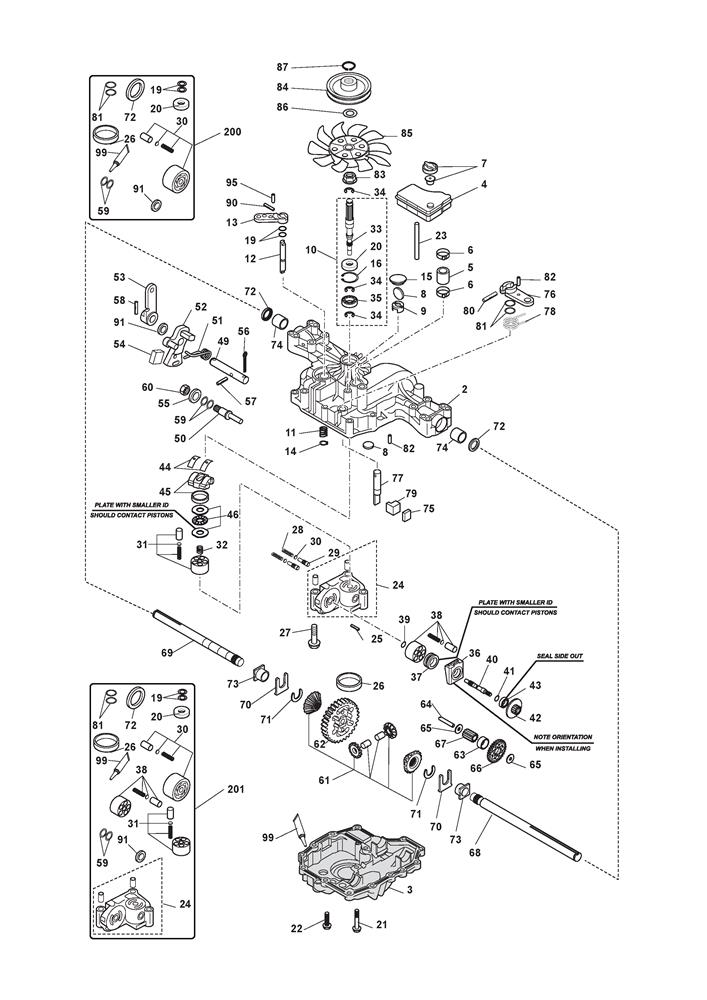

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	118400960/0	HYDRO TRANSAXLE K46S	£1,492.43	Add to
004	1139-1476-01	RESERVOIR TANK	£38.44	Add to
005	1139-1363-01	TUBE	£6.69	Add to
006	1139-1336-01	COBRA CLIP	£5.19	Add to
007	1139-1595-01	VENT VALVE CAP	£14.73	Add to
008	1139-1150-01	MAGNET	£8.23	Add to
009	1139-1341-01	MAGNET HOLDER	£4.37	Add to
010	1139-1606-01	PUMP SHAFT KIT	£77.90	Add to
011	1139-1347-01	SPRING	£1.91	Add to
013	1139-1189-01	BY-PASS LEVER	£9.19	Add to
014	1139-1161-01	RING	£1.58	Add to
016	1139-1104-01	CIRCLIP	£2.06	Add to
019	1139-1117-01	O RING	£1.50	Add to
020	1139-1119-01	SEAL 15.35.7	£5.37	Add to
021	1139-1295-01	SCREW	£2.87	Add to
024	1139-1593-01	REPAIR KIT	£865.59	Add to
024	1139-1592-01	CENTER CASE KIT	£354.63	Add to
025	1139-1158-01	PIN	£1.58	Add to
026	1139-1405-01	FILTER 105 Μ	£24.64	Add to
