SEAT & STEERING WHEEL

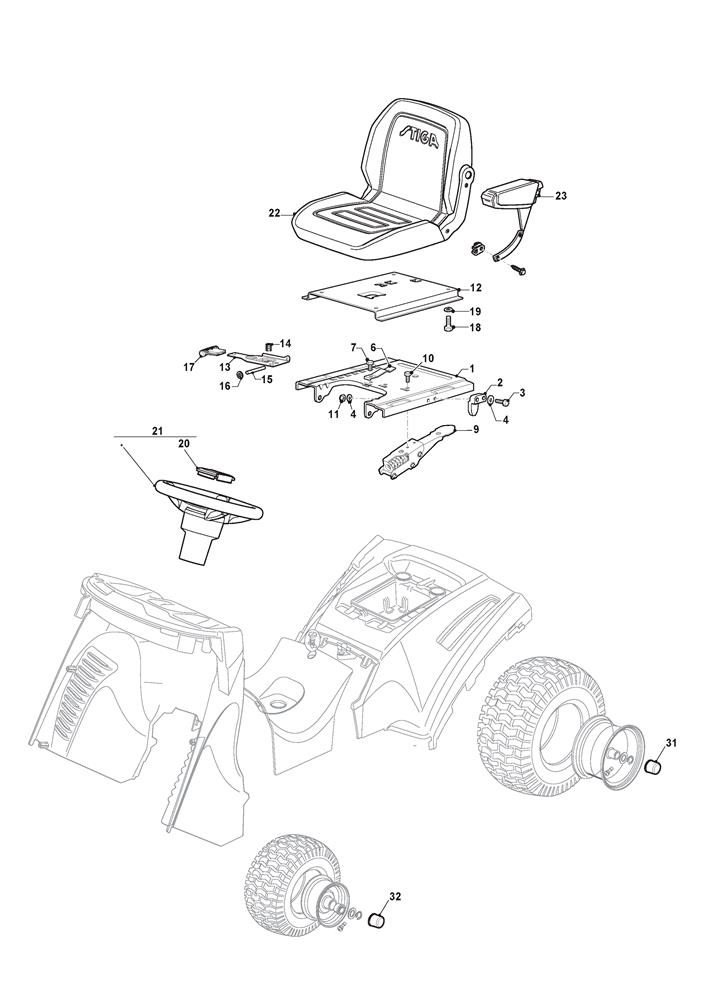

SEAT & STEERING WHEEL assembly details for Stiga Estate Pro 9122 XWSY (2T1535381/ST1P) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382785301/0FIXED SEAT SUPPORT£45.26 Add to
002325060049/0SEAT SWITCH CAM£2.74 Add to
003112815050/0SCREW M5 x 25£2.06 Add to
004112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
006125430203/1SPRING£3.69 Add to
007112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
009382318316/1OPC SPRING LEVER ASSEMBLY£42.53 Add to
010112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
011112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
012325785147/2MOVING SEAT SUPPORT£38.26 Add to
014125430202/1SPRING£2.06 Add to
015125510000/0PIN£1.79 Add to
016112604897/0STARLOCK WASHER D=5£2.06 Add to
017322394505/0WHEEL LEVER KNOB [BLACK]£2.87 Add to
018112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
019112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
020325580508/0STEERING WHEEL CAP [STIGA]£6.55 Add to
021325961222/1STIGA STEERING WHEEL [BLACK]£282.41 Add to
022125722480/1STIGA STYLE SEAT£320.51 Add to
023387185100/1ARM RESTS KIT£207.55 Add to
031322110240/0STIGA HUB COVER [BLACK]£1.91 Add to
032322110239/0STIGA HUB CAP [BLACK]£2.18 Add to
