CUTTING PLATE

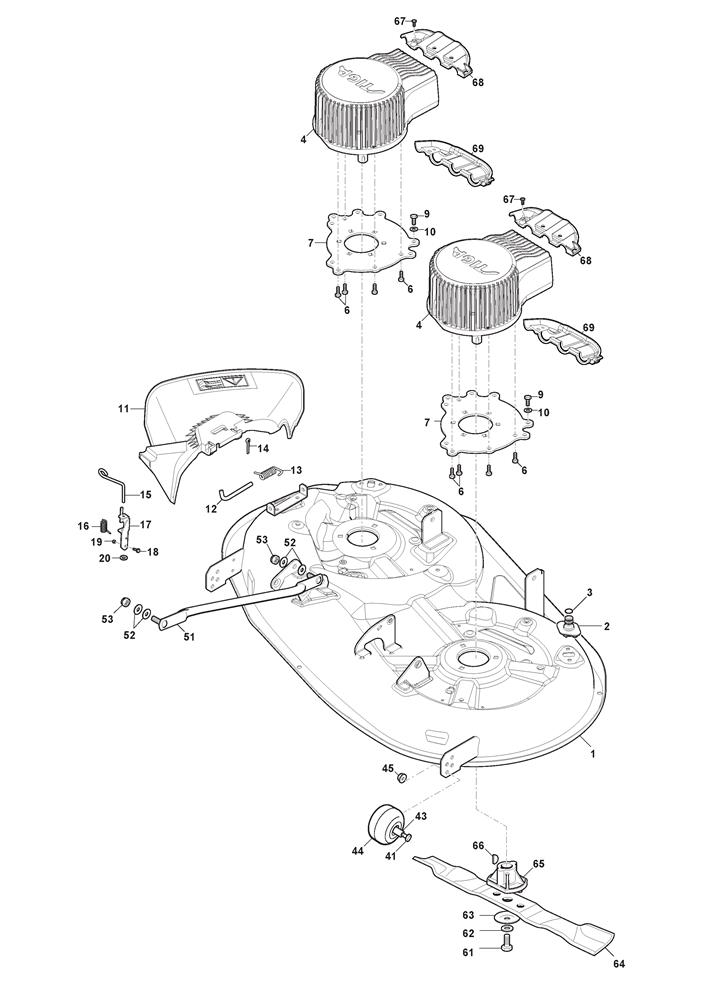

CUTTING PLATE assembly details for Stiga E-Ride S300 (2T0660481/ST1) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382564233/0CUTTER DECK SD98 (BLACK)£394.95 Add to
002325033086/0WASHING CONNECTION SD 98£2.06 Add to
003119035000/0O RING 10.77 x 2.62£5.46 Add to
004118563746/1L/H BLADE ELECTRIC MOTOR£1,126.06 Add to
005118811500/0BLADE MOTOR (GYRO)£7.71 Add to
006112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
007382207223/0E-COATING ENGINE BLADES FLANGE£47.65 Add to
009112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
010112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
011325600077/3DEFLECTOR [BLACK]£18.82 Add to
012125510073/0FULCRUM PIN£8.04 Add to
013125430242/1SPRING£3.64 Add to
014112141418/0SPLIT PIN 3 x 20£1.76 Add to
015125318355/0FULCRUM PIN£5.32 Add to
016125430288/0SPRING£9.39 Add to
017325774719/0BP GRASS DEFLECTOR PIN BRACKET SDR 108£6.09 Add to
018112815200/0SCREW TTDQ M6X16£2.06 Add to
019112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
020112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
041112692050/0HEX-HEAD SCREW£1.91 Add to
042112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
043125510072/1WHEEL SPACER£2.18 Add to
044182700001/0ANTI-SCALP WHEEL D=100mm£5.87 Add to
045112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
051382000565/1BALANCE ROD£20.99 Add to
052325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
053112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
061112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
062112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
063122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
064182004346/0MULCHING BLADE 98cm£23.45 Add to
065125463200/0BLADE BOSS£9.82 Add to
066112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
067112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
068325600144/1UPPER WIRES GUARD£6.04 Add to
069325600145/1LOWER WIRES GUARD£6.04 Add to
