ELECTRICAL PARTS

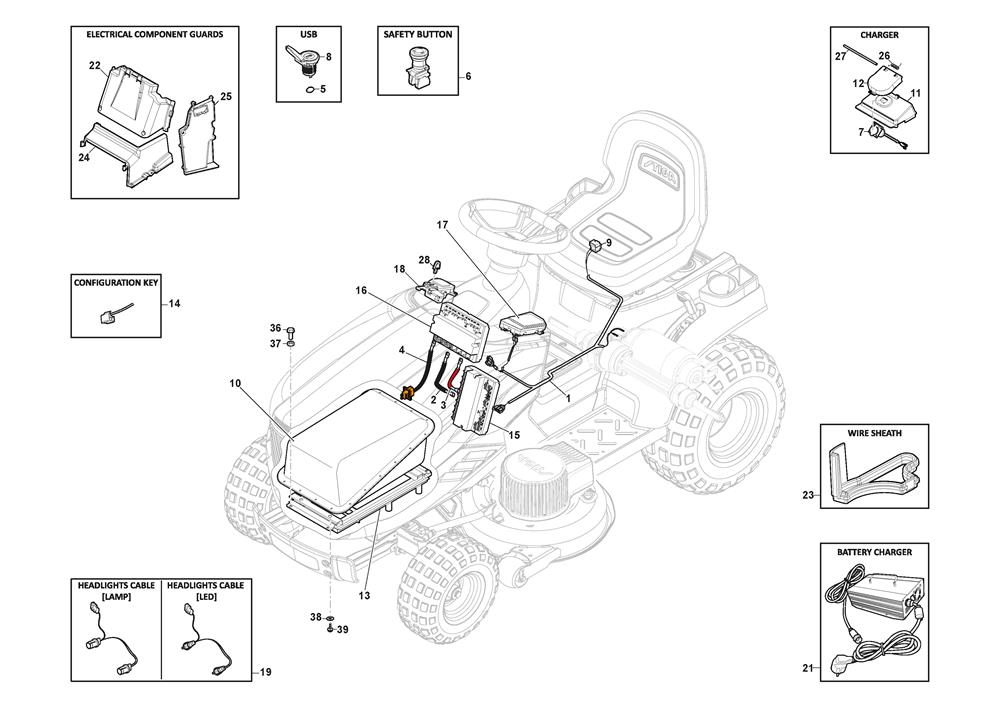

ELECTRICAL PARTS assembly details for Stiga E-Ride S500 (2T0665481/ST1) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001182040236/1WIRING HARNESS (MP/EL V1-V2)£177.00 Add to
002125065045/0NEGATIVE POWER TRACTION CABLE£20.94 Add to
003125065046/0POSITIVE POWER TRACTION CABLE£20.94 Add to
004125065048/0BATTERY POWER SOFT CABLE (BAT-VMS)£196.70 Add to
005325774774/0USB ANTI-ROTATING PLATE (V2)£4.21 Add to
006187040332/0SAFETY BUTTON (RED)£117.26 Add to
007125065047/1CHARGER CONNECTION CABLE£85.82 Add to
009119410633/0MICRO SWITCH N.O.£7.50 Add to
010118361048/1BATTERY PACK 40Ah MP/SD SUN POWER 25R A£2,982.39 Add to
011325785589/0CHARGER PLUG SUPPORT (BLACK)£11.10 Add to
012325207295/0CHARGER PLUG COVER (BLACK)£3.65 Add to
013382785315/0E-C BATTERY SUPPORT£59.06 Add to
014118361033/0PROGRAM CONFIGURATION KEY-SD98 BATT£20.74 Add to
015118361030/2VMS CONTROLLER V1-V2 MP/SD EL£1,808.47 Add to
016118361072/0TRACTION CONTROLLER£534.49 Add to
017382722461/1PC BOARD ASSEMBLY£192.00 Add to
019182040186/0HEADLIGHTS CABLE (FOR LAMP VERSION)£11.18 Add to
019182040191/0HEADLIGHTS CABLE [LED]£16.10 Add to
021182180179/3BATTERY CHARGER 5A UK MP/SD BAT£335.40 Add to
022325600139/0UPPER GUARD (BLACK)£10.55 Add to
023325600143/0WIRE SHEATH£4.36 Add to
024325600141/0RIGHT GUARD (BLACK)£8.78 Add to
025325600142/0LEFT GUARD (BLACK)£6.89 Add to
026125430296/1SPRING£1.50 Add to
027125510183/0FULCRUM COVER PIN£1.55 Add to
036112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
037112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
038112540260/0INNER TOOTHED WASHER M8£2.06 Add to
039112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
