ENGINE - STIGA 17-19-21 HP

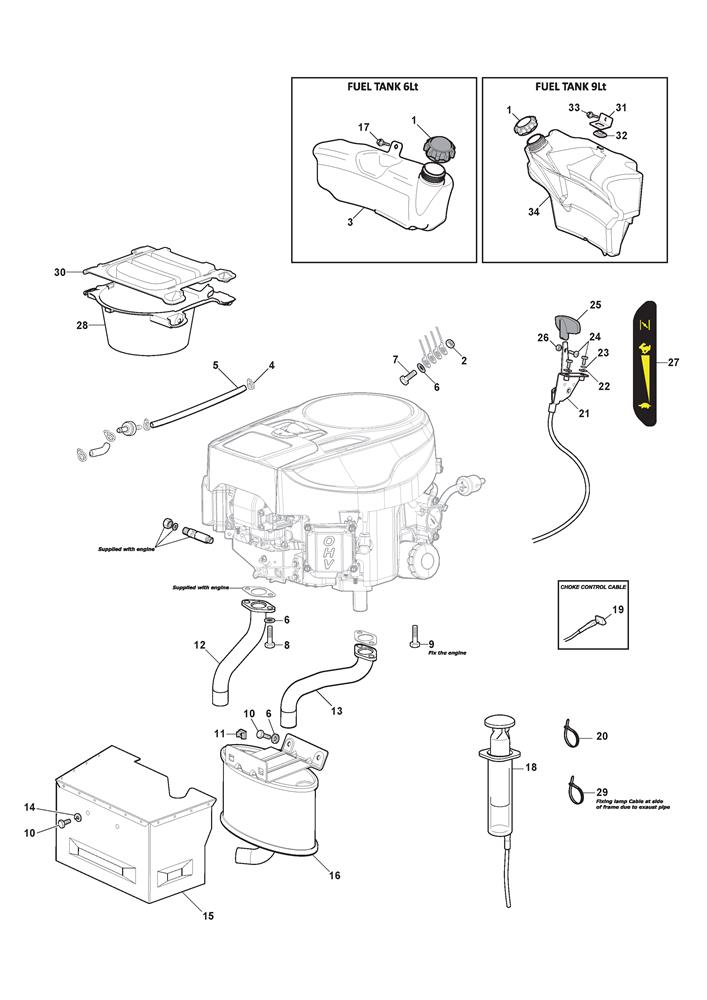

ENGINE - STIGA 17-19-21 HP assembly details for Stiga Estate 2398 HW (2T2630481/ST1) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125795001/1FUEL TANK CAP£8.32 Add to
002112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
003325735126/1FUEL TANK [6 LT]£47.97 Add to
004118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
005325869057/0FUEL TUBE L=1000£20.72 Add to
006112540260/0INNER TOOTHED WASHER M8£2.06 Add to
007112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
008112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
009112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
010112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
011112360425/0SQUARE NUT M8£2.18 Add to
012112360425/0SQUARE NUT M8£2.18 Add to
013118738279/0Muffler exhaust pipe left V-twin STIGA£27.27 Add to
014112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
015382598077/0GB SILENC.PROTECT ASSY TC-NJ ST V-TWIN£64.32 Add to
016182750003/0MUFFLER ASSEMBLY£265.02 Add to
017125943010/0FLANGED SCREW£2.06 Add to
018118718000/0OIL EMPTYING SYRINGE£16.22 Add to
019125090003/0CHOKE CONTROL CABLE£20.45 Add to
020133320022/0FASTPOINT BAND ART. 0384.AA01 L=160£2.06 Add to
021182000221/0THROTTLE CABLE ASSY FOR STIGA TWIN ENG£24.95 Add to
022112521310/0WASHER M4 4.3 x 9 x 0.8£1.79 Add to
023112540020/0EXTERNAL TOOTHED WASHER M4£2.06 Add to
024112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
024112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
025325394531/0THROTTLE CONTROL KNOB£1.91 Add to
026112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
027114364617/0THROTTLE DECAL SD98£2.06 Add to
028325108112/0LONG AIR CONVEYOR STIGA MP-SD£11.18 Add to
029133320027/0FASTPOINT BAND ART. 0387.AA01 L=290£2.06 Add to
030325263318/0AIR INTAKE GRILL [BLACK]£13.23 Add to
031325755085/0EBP 9LT FUEL TANK FIX BRACKET SDR£5.19 Add to
033127943051/0SCREW D=6.3 x 13£2.18 Add to
034325735132/0SDR FUEL TANK 9 LT£62.97 Add to
