ENGINE - STIGA 17-19-21 HP

ENGINE - STIGA 17-19-21 HP assembly details for Stiga Estate 6102 HW2 (2T0980481/ST1) 2021 model

Parts list

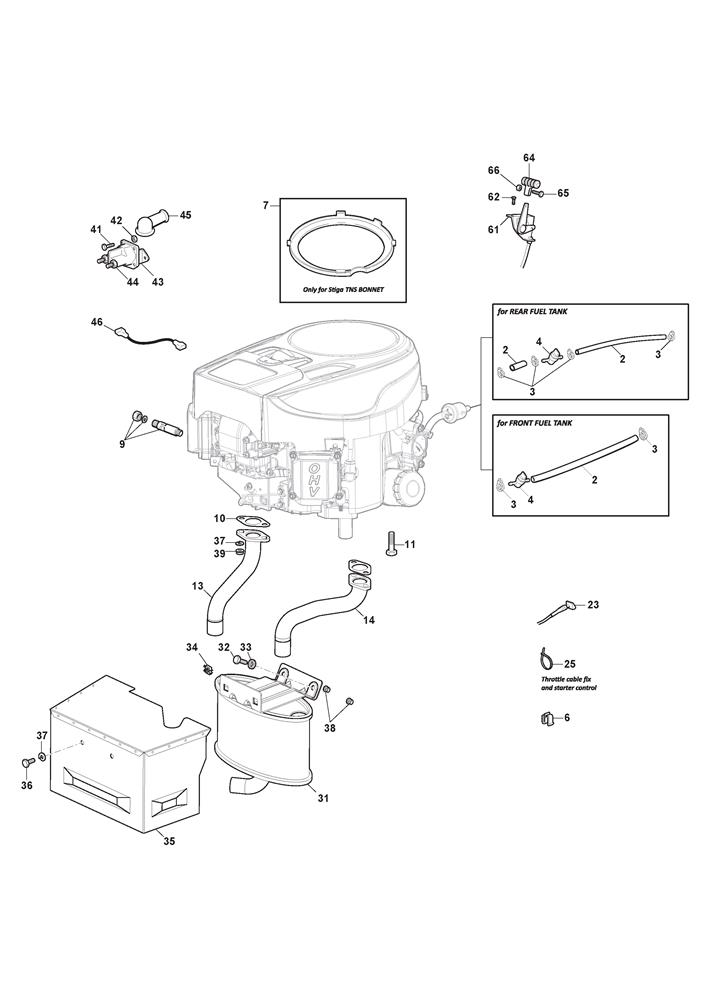

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869057/0FUEL TUBE L=1000£20.72 Add to
003118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
006133320504/0CABLE CLIP£2.06 Add to
007125730031/0INTAKE SEPARATOR STIGA£32.99 Add to
009127598060/0OIL DRAIN EXTENSION£8.52 Add to
010118551272/0MUFFLER GASKET£2.87 Add to
011112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
013118738278/0Muffler exhaust pipe right V-twin STIGA£27.27 Add to
014118738279/0Muffler exhaust pipe left V-twin STIGA£27.27 Add to
023125090001/2CHOKE CONTROL CABLE£19.62 Add to
025133320022/0FASTPOINT BAND ART. 0384.AA01 L=160£2.06 Add to
026325735131/0FUEL TANK [8 LITRES]£65.69 Add to
027125795001/1FUEL TANK CAP£8.32 Add to
028112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
029112500092/0RIVET D=7£2.06 Add to
031182750014/0DOUBLE-CYLINDER MUFFLER£170.61 Add to
032112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
033112540260/0INNER TOOTHED WASHER M8£2.06 Add to
034112360425/0SQUARE NUT M8£2.18 Add to
035382598075/0GB SILENC.PROTECT ASSY TC-NJ ST V-TWIN£68.42 Add to
036112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
037112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
039112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
041112791213/1SCREW M6 X 18£1.74 Add to
042112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
043118736113/0SOLENOID£39.22 Add to
044112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
045118564861/2RED RUBBER TERMINAL COVER£7.10 Add to
046125065017/0MOTOR/SOLENOID CONNECT CABLE£9.82 Add to
061182000221/0THROTTLE CABLE ASSY FOR STIGA TWIN ENG£24.95 Add to
062125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
064325592000/1LEVER KNOB£2.32 Add to
065112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
066112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
