ENGINE - GXV 630

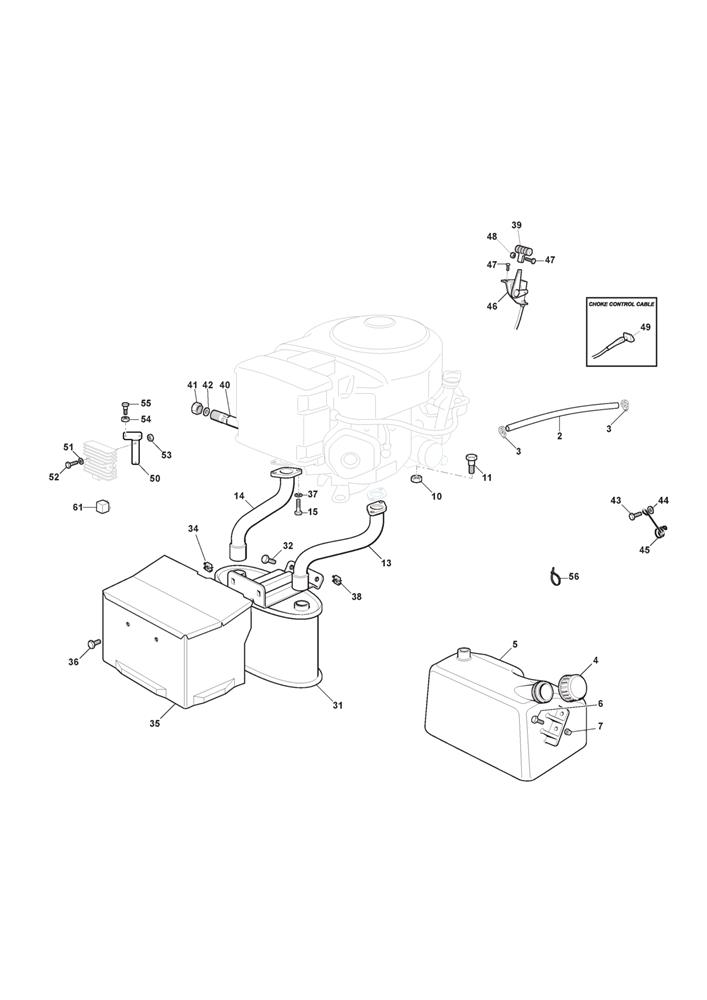

ENGINE - GXV 630 assembly details for Stiga Estate 7122 HWSY (2T1310381/ST1PSA) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869033/1FUEL PIPE L=620 HONDA GXV 610£12.00 Add to
003118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
004137793051/0FUEL TANK CAP£13.00 Add to
005325735131/0FUEL TANK [8 LITRES]£65.69 Add to
006112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
007112500092/0RIVET D=7£2.06 Add to
010112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
011125510028/3PIN£5.46 Add to
013118738244/0LEFT DISCHARGED CONNECT.TUBE GXV 660£52.06 Add to
014118738243/0RIGHT DISCHARGED CONNECT.TUBE GXV 660£52.06 Add to
015112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
031182750014/0DOUBLE-CYLINDER MUFFLER£170.61 Add to
0329959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
034112360425/0SQUARE NUT M8£2.18 Add to
035382598073/0ASS. PROTEZIONE CALORE TC GXV630 ZNN£91.58 Add to
036112800815/0SCREW TE FL M8 x 16£2.06 Add to
037112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
039325592000/1LEVER KNOB£2.32 Add to
040127598061/2OIL DISCHARGE TUBE£24.95 Add to
041118737849/0OIL DRAIN PLUG£2.47 Add to
042118401001/1OIL DRAIN SEAL£2.06 Add to
043112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
044112540040/0EXTERNAL TOOTHED WASHER M6£1.79 Add to
045127430561/0SPRING£2.87 Add to
046182000218/0THROTTLE CABLE£26.18 Add to
047112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
048112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
049125090001/2CHOKE CONTROL CABLE£19.62 Add to
050325547271/0CHARGE REGULATION SUPPORT PLATE GXV690£15.13 Add to
051112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
053112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
054112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
055112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
056133320022/0FASTPOINT BAND ART. 0384.AA01 L=160£2.06 Add to
061133567000/0RELAY£13.91 Add to
