BODY

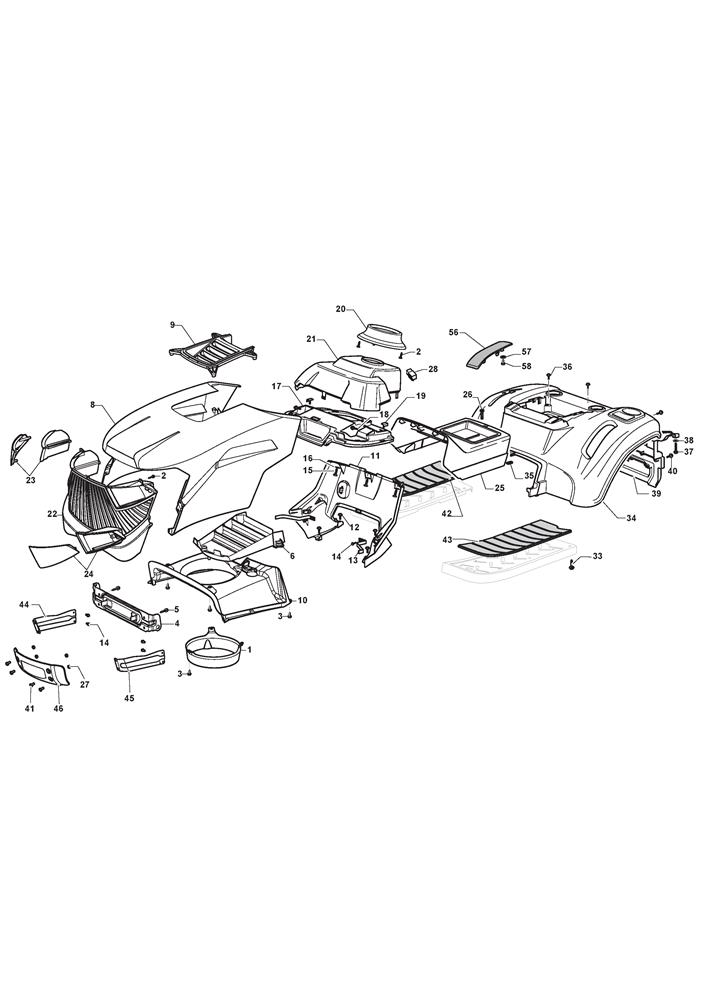

BODY assembly details for Stiga Tornado 4108 HW (2T1220481/AP20) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325108113/0AIR ENGINE STIGA SDR CONVEYOR£9.14 Add to
002112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
003112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
004325785551/1ENGINE HOOD SUPPORT£11.67 Add to
005112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
006325263312/0LOW BONNET AIR INTAKE GRILL NCS8000N SDR£17.04 Add to
008325076990/0ENGINE HOOD SDR [YELLOW]£150.18 Add to
009325263311/0AIR INTAKE GRILL [GREY]£17.04 Add to
010325108107/0GREY NCS8000N BONNET AIR CONVEYOR SDR£49.92 Add to
011325785298/0DASHBOARD SUPPORT [BLACK]£29.30 Add to
012125943010/0FLANGED SCREW£2.06 Add to
013325270325/0DASHBOARD SUPPORT GUIDE£5.19 Add to
014112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
015112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
016112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
017325120259/2DASHBOARD [BLACK]£35.71 Add to
018125943010/0FLANGED SCREW£2.06 Add to
019325260003/0DASHBOARD GROMMET£2.06 Add to
020325600134/0STEERING WH. PROTECTION EXT. [BLACK]£4.52 Add to
021325120283/0DASHB. COVER SD/MP[BLACK] L. W/H£17.04 Add to
022325076991/0FRONT HOOD SDR [GREY]£75.23 Add to
025325110541/0CENTRAL COVER (GREY)£40.81 Add to
026125943010/0FLANGED SCREW£2.06 Add to
027112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0289400-0384-01HOUR METER£94.31 Add to
033112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
034325110399/1WHEELS COVER [YELLOW]£143.37 Add to
035112437506/0DOUBLE PLATE£2.87 Add to
036125943010/0FLANGED SCREW£2.06 Add to
037112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
038112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
039325547429/0REAR PLATE SDR108 [BLACK]£21.67 Add to
040125943010/0FLANGED SCREW£2.06 Add to
041112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
042325110384/0RIGHT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
043325110385/0LEFT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
044382785255/0RIGHT BUMPER SUPPORT£29.14 Add to
045382785257/0LEFT BUMPER SUPPORT£29.14 Add to
046382263501/0FRONT GUARD£33.62 Add to
057112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
058112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
