ENGINE - HONDA GXV 690

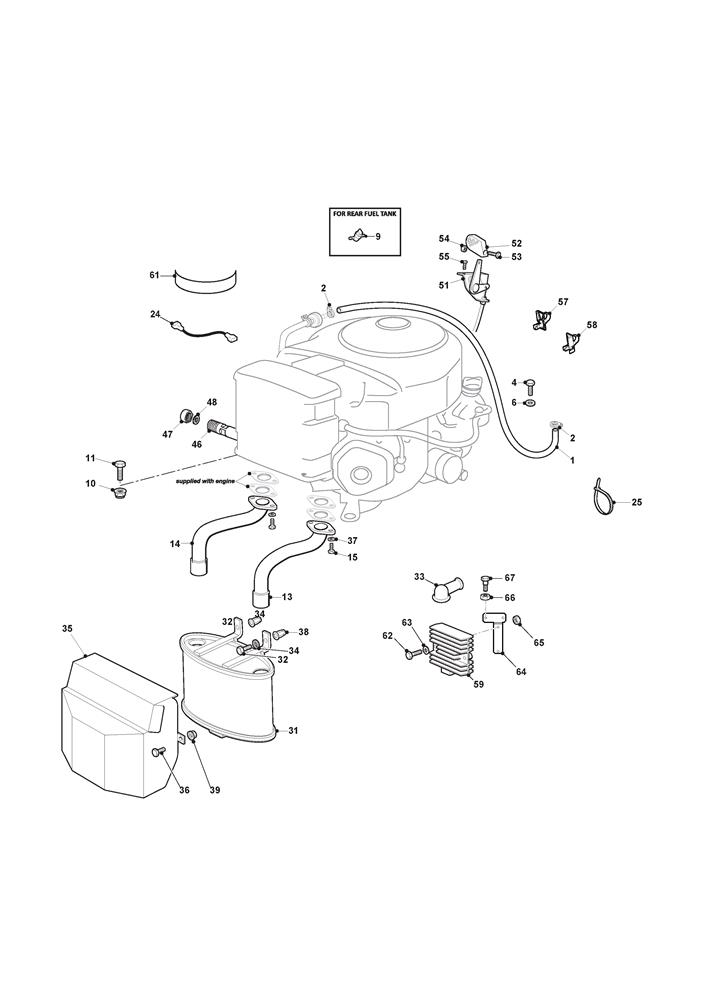

ENGINE - HONDA GXV 690 assembly details for Stiga Tornado Pro 9121 XWSY (2T3040381/ST1) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325869016/1CONNECTING TUBE£7.10 Add to
002118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
004112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
006112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
009118566119/0FUEL TAP£15.89 Add to
010112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
011125510028/3PIN£5.46 Add to
013118738280/0LEFT EXHAUST CONNECTION PIPE£68.75 Add to
015112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
024125065017/0MOTOR/SOLENOID CONNECT CABLE£9.82 Add to
025133320022/0FASTPOINT BAND ART. 0384.AA01 L=160£2.06 Add to
031182750016/0DOUBLE CYLINDER MUFFLER GXV690N/A POA
032112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
033118564861/2RED RUBBER TERMINAL COVER£7.10 Add to
034112540260/0INNER TOOTHED WASHER M8£2.06 Add to
035382598043/4TWIN CYLINDER MUFFLER GUARD TC HE BZ£84.22 Add to
036112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
037112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
038112280101/0HEXAGON NUT OPEN RIVET£2.18 Add to
039112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
046127598061/2OIL DISCHARGE TUBE£24.95 Add to
047118401001/1OIL DRAIN SEAL£2.06 Add to
048118737849/0OIL DRAIN PLUG£2.47 Add to
051182000218/0THROTTLE CABLE£26.18 Add to
052325592000/1LEVER KNOB£2.32 Add to
053112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
054112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
055125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
061125730027/0SPONGE INTAKE SEPARATOR£9.00 Add to
063112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
064325547271/0CHARGE REGULATION SUPPORT PLATE GXV690£15.13 Add to
065112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
066112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
067112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
