Transmission T2

Transmission T2 assembly details for Stiga COMBI 1066 H 2017 model

Parts list

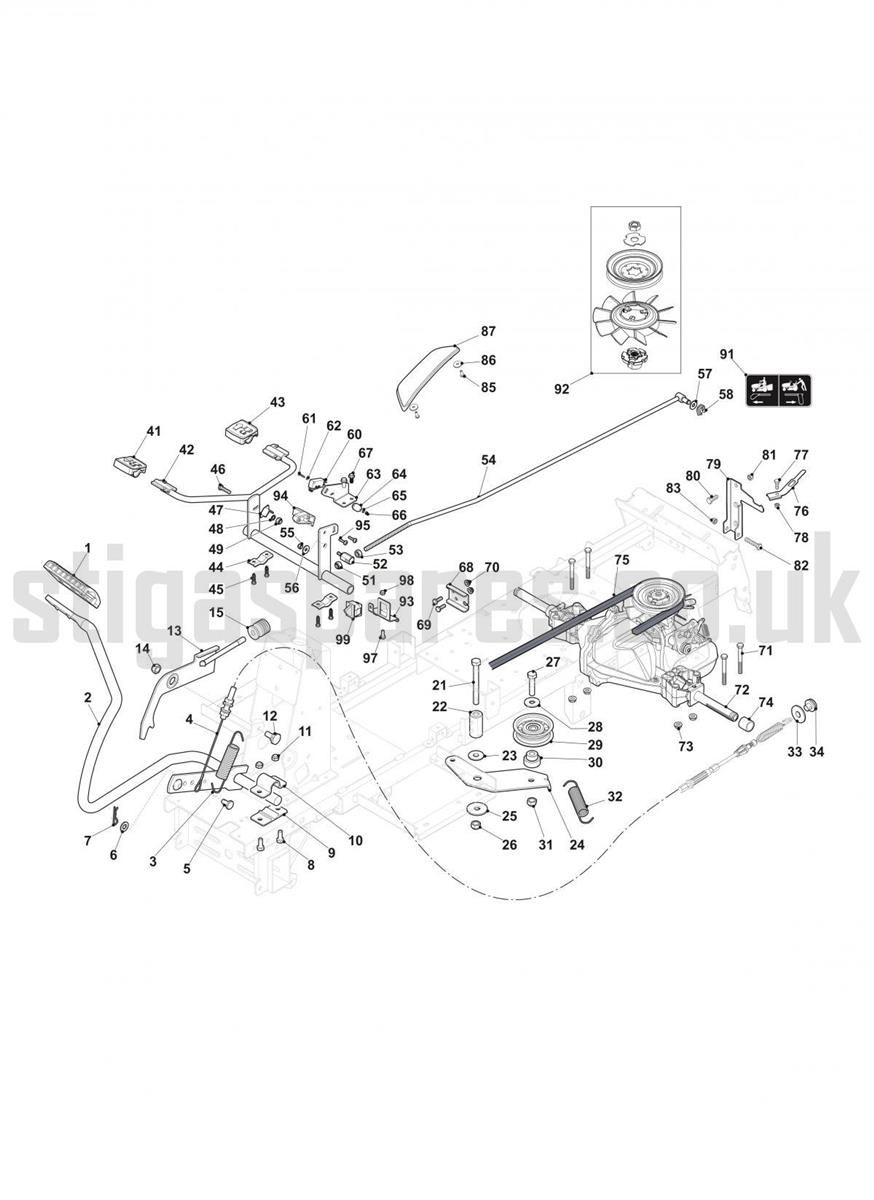

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325110409/0BRAKE PEDAL COVER£7.63 Add to
002384503013/0WZ BRAKE PEDAL ASS.Y NR66£53.42 Add to
003127430594/0TRACTION BELT SPRING NR66£6.01 Add to
004384004604/0BRAKE CABLE [HYDRO]£28.19 Add to
005127510120/0CABLE FIXING PIN NR66 WZ£4.78 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007124487997/0SPRING CLIP D=1.8£2.06 Add to
008112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
009325785350/0AXLE FEED PEDA SUPPORT SD98 HYDRO£2.06 Add to
010325547231/0LIFTING DECK AXLE PLATE£5.05 Add to
011112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
012122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
013384002097/0BRAKE CONTROL ROD£15.00 Add to
014112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
015127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
021112691900/0HEX-HEAD SCREW£1.91 Add to
022127160065/0TRACTION PULLEY SPACER WZ NR66£6.95 Add to
023122041980/0SPACER ROLLER BUSH£2.06 Add to
024327315139/0TRACTION BELT PULLEY LEVER WZ NR66£6.69 Add to
025112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
026112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
027112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
028112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
029127604015/0TRACTION PULLEY NR66£14.32 Add to
030127160064/0TRACTION PULLEY SPACER NR66£5.46 Add to
031112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
032127430594/0TRACTION BELT SPRING NR66£6.01 Add to
033112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
034127510124/0BRAKE CABLE FIZING PIN NR66£4.52 Add to
041325110274/0FRONT PEDAL COVER [BLACK]£6.27 Add to
042384503011/1WZ HY FEED PEDAL ASS.Y NR66£47.97 Add to
043325110331/0REVERSE GEAR PEDAL [BLACK]£7.36 Add to
044327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
045112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
046112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
047127063022/0PLASTIC NEUTRAL SWITCH CAM£2.87 Add to
048112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
049112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
051112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
052127510103/0AXLE PIN CONTROL BRAKE£4.52 Add to
053112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
054384002095/0CONTROL ROD ASSEMBLY WZ NR66£27.27 Add to
055112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
056112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
057325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
058112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
060119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
061112735602/0"SELF-FORMING SCREW M3 x 20 ""TAPTITE""£2.06 Add to
062112581100/0WASHER GROWER M3 UNI 1751 WZ£1.79 Add to
063327543053/1WZ NEUTRAL SWITCH PLATE HOLDER NR66£4.52 Add to
064327546019/0WZ MICRO NEUTRAL FIX PLATE£1.79 Add to
065112540020/0EXTERNAL TOOTHED WASHER M4£2.06 Add to
066112290791/0HEXAGON NUT M3 UNI 5588 ACC.6S£2.06 Add to
067112735122/1HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
068327772223/0WZ BRAKE CABLE HOOKING STIRRUP NR66£3.69 Add to
069112791200/1SCREW TE M6 x 16£1.79 Add to
070112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
071112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
072118400980/0TRANSAXLE HYDRO-GEAR T2-AJBF-2X3C-16X1£906.47 Add to
073112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
074127160063/0REAR WHEEL SPACER NR 66£4.10 Add to
075135061429/0TRANSMISSION BELT HYDRO A31 ½ NR66£34.35 Add to
076327315137/0UNLOCK CONTROL LEVER NR66£4.52 Add to
077112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
078112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
079327772187/0WZ NR66 REAR HY TRANS.SUPP.STIRRUP£7.10 Add to
080112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
081112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
082112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
083112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
085112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
086112523030/0WASHER M5 5.5 x 20 x 1.6£2.06 Add to
087327110507/0CLOSING HOLE COVER BLACK NR66£13.49 Add to
091114361451/0DUMP VALVE DECAL LABEL [HYDRO]£3.55 Add to
0921139-2202-01HYDRO FAN KIT£142.15 Add to
093327787107/0REVERSE MICRO SUPPORT£7.74 Add to
094327063026/0MICRO REVERSE SWITCH CAM BLACK£4.10 Add to
095112735404/0FLANGED HEX-HEAD SCREW D5 x 16 WZ£2.06 Add to
097112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
098112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
099119410614/0MICRO SWITCH N.C.£6.55 Add to
