Battery Tiller

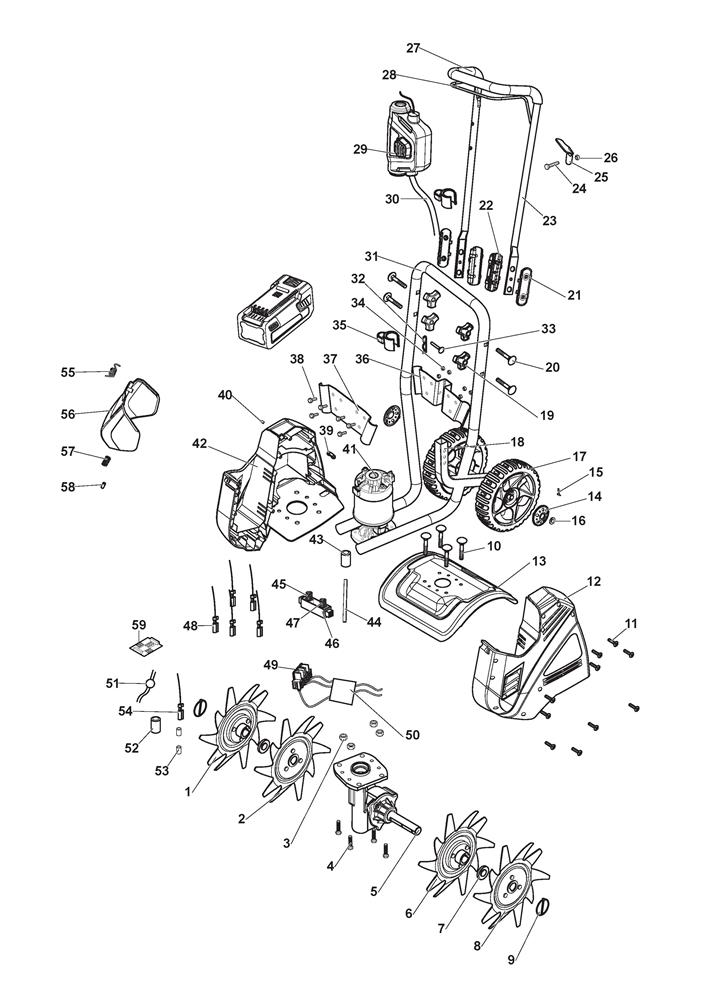

Battery Tiller assembly details for Stiga SRC 48 AE 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803232/0BLADE ASSEMBLY (A)£23.45 Add to
002118803234/0BLADE ASSEMBLY (B)£23.45 Add to
003112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
004112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
005118803233/0GEARBOX ASSEMBLY£175.19 Add to
005118803233/1GEARBOX ASSEMBLY£179.92 Add to
006118803240/0BLADE ASSEMBLY (C)£26.23 Add to
007118850050/0FELT WASHER£2.86 Add to
008118803241/0BLADE ASSEMBLY (D)£23.45 Add to
009112620210/0ELASTIC ROLL PIN 4 X 30£2.06 Add to
010112819110/0CARRIAGE BOLT M8 x 50£2.02 Add to
010118820489/0HANDLE BOLT£2.07 Add to
011112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
012118850038/0LEFT HOUSING (OBSOLETE)N/A
013118850039/0BLADE GUARD (OBSOLETE)N/A
0153314110ELASTIC PIN 2.5 x 10£3.64 Add to
016118820480/0WASHER£3.64 Add to
017118803376/06" WHEEL£18.04 Add to
018118803260/0WHEEL AXLE ASSEMBLY£13.47 Add to
018118850040/0WHEEL SHELF ASSEMBLY£13.23 Add to
019118803807/0HANDWHEEL [SILVER GREY]£5.38 Add to
020112691700/0SCREW M8 x 55£1.91 Add to
020118820489/0HANDLE BOLT£2.07 Add to
021118803359/0OUTER HANDLE CLAMP£2.47 Add to
021118803359/1FIXED BOX COVER£2.47 Add to
022118803360/0INNER HANDLE CLAMP£2.47 Add to
022118803360/1FIXED BOX£2.61 Add to
023118803355/0UPPER HANDLE£20.65 Add to
024112735657/0SCREW M5 X 30£3.64 Add to
025118803400/0LEVER STOP£3.72 Add to
026112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
027118803466/0SPONGE HANDGRIP£5.64 Add to
028118803393/0PULL SWITCH LEVER£12.77 Add to
028118850041/0SWITCH PULL - STIGA YELLOW£6.58 Add to
029118803349/0CABLE BOX ASSEMBLY£34.02 Add to
030118850051/0POWER CORD£8.91 Add to
031118803356/0LOWER HANDLE£17.23 Add to
032124487999/0R CLIP D=3£1.91 Add to
033118803263/0PIN£2.06 Add to
034112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
035118803464/0CABLE CLAMP£2.14 Add to
036118803275/0LOWER SUPPORT BOARD£11.36 Add to
037118803271/0UPPER SUPPORT BOARD£9.78 Add to
038112790500/0HEX-HEAD SCREW M6 x 10£2.06 Add to
039118820497/0CIRCLIP£3.64 Add to
040118803299/0MAGNET£4.43 Add to
041118803367/0ELECTRIC MOTOR£57.95 Add to
042118850043/0RIGHT HOUSING (OBSOLETE)N/A
043118803300/0SPACER£4.27 Add to
044118803265/0FLEXIBLE SHAFT£4.10 Add to
045118803287/0SPRING£4.27 Add to
045118850044/0SPRING£2.06 Add to
046118803324/0RUBBER BLANKET£4.53 Add to
047118803307/0ORIENTATION SEAT£4.43 Add to
048118803229/0B TERMINAL£3.64 Add to
049118803304/0INSERT BLOCK£7.63 Add to
050118803370/0PCB BOARD - NLA£46.61 Add to
051118803371/0INDUCTANCE£6.79 Add to
051118850045/0INDUCTANCE£8.52 Add to
052118803344/0MAGNET RING£4.35 Add to
053118803335/0MAGNET RING£2.14 Add to
053118850046/0MAGNETIC RING£5.61 Add to
054118803230/0B TERMINAL£2.00 Add to
055118803291/0TORSION SPRING£2.14 Add to
056118803301/0TRANSPARENT COVER (OBSOLETE)N/A
057118803298/0BATTERY DOOR PRESS SPRING£2.14 Add to
058118803258/0BATTERY DOOR PIN£3.64 Add to
059118850047/0CIRCUIT BOARD£46.61 Add to
