Handle

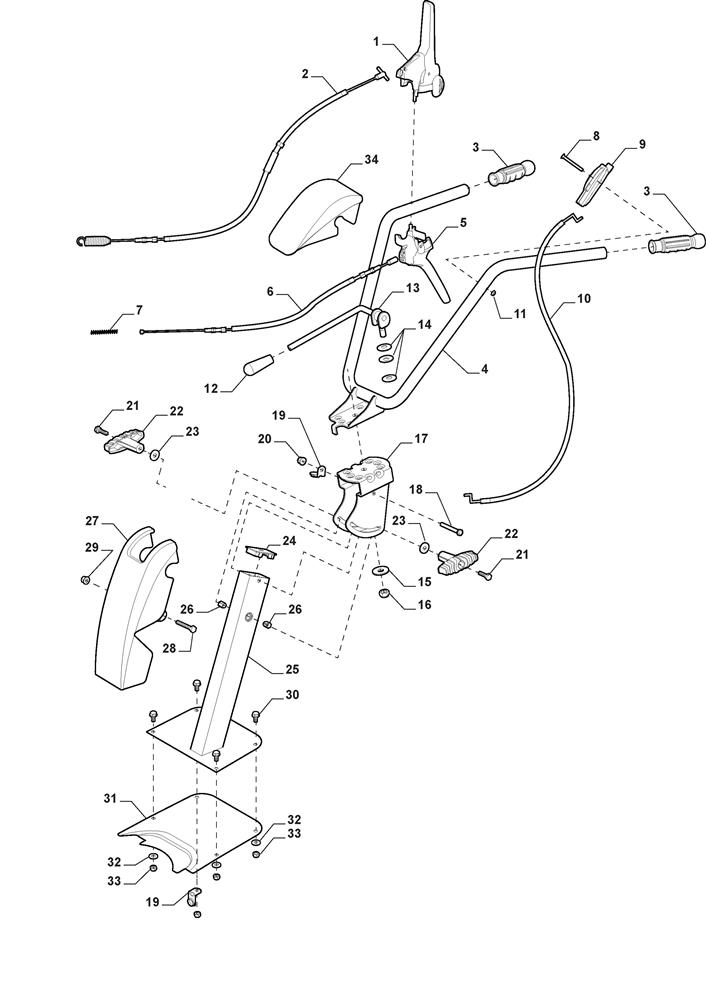

Handle assembly details for Stiga SRC 550 RB 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118802984/0CLUTCH LEVER£35.74 Add to
002118803007/0CLUTCH CABLE£38.44 Add to
0031483-2213-01HANDLE GRIP£4.90 Add to
004118802979/0HANDLE£90.98 Add to
005118803008/0CLUTCH LEVER-REVERSE£35.58 Add to
006118803006/0CLUTCH CABLE-REVERSE£32.99 Add to
0071483-2019-01SPRING£3.83 Add to
0089948-0655-16SCREW£2.06 Add to
0091483-2016-01THROTTLE CONTROL£8.87 Add to
0101483-2109-01CONTROL CABLE£17.86 Add to
011112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0121483-2279-01KNOBN/A POA
0131483-2044-01LEVERN/A POA
0141483-2073-01WASHERN/A POA
0159699-0121-02WASHER£2.06 Add to
0169747-1231-02NUT£2.06 Add to
017118802980/0HANDLE REINFORCEMENTN/A POA
018112691900/0HEX-HEAD SCREW£1.91 Add to
0191483-2021-01WIRE SUPPORT PLATE - NLA£2.14 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
021112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
022118803004/0LEVER KNOB£5.73 Add to
0239699-0122-02WASHER 9 x 28 x 2£2.06 Add to
0241483-2166-01CAP£2.87 Add to
025118803005/0HANDLE SUPPORT£102.80 Add to
0261483-2191-01NUT£2.06 Add to
027118803003/0FRONT PANEL [YELLOW]£25.12 Add to
028112789350/0SCREWN/A POA
029112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0309959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
031118802999/0Plate-YellowN/A POA
032112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
033112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
034118802977/0PANEL [YELLOW]£20.49 Add to
