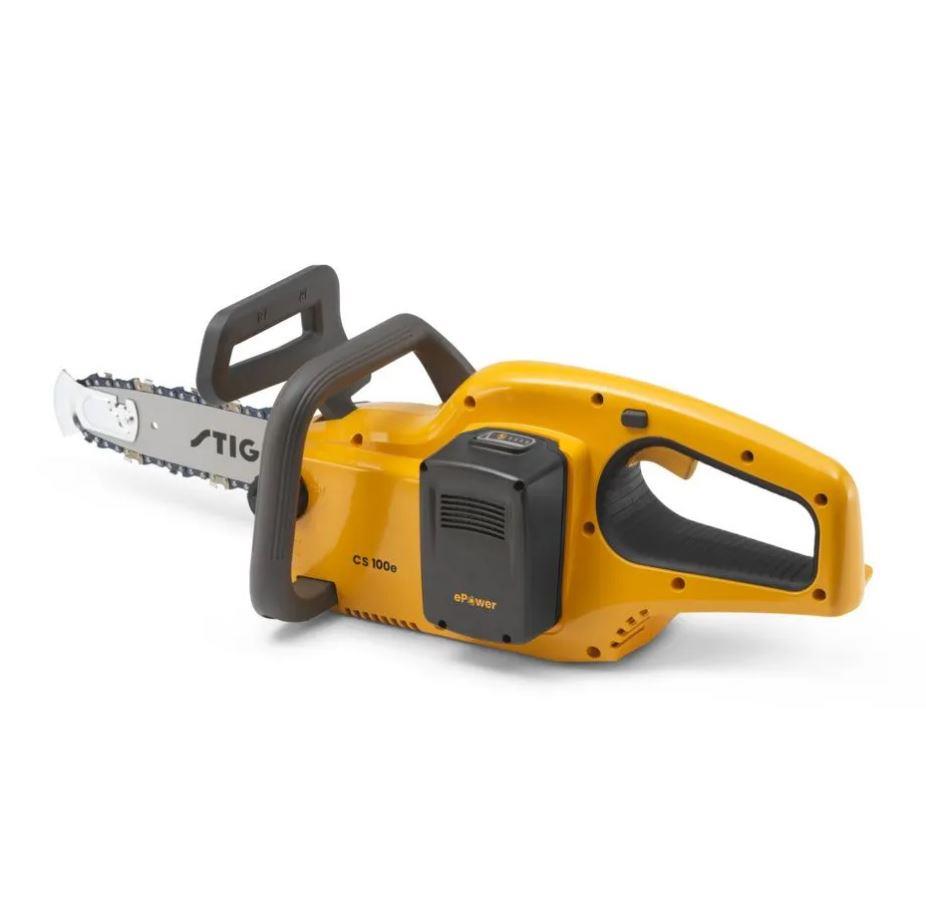

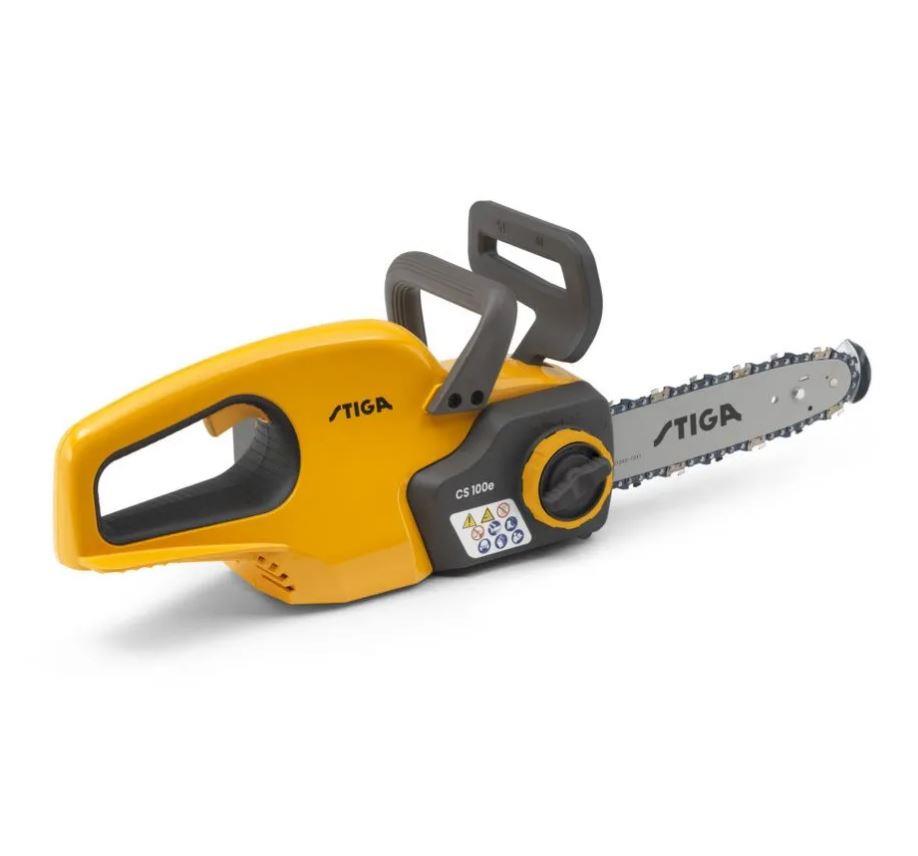

If you have to prune one or more branches or to cut logs for your fireplace, the ideal tool is the CS 100e kit, the first STIGA 20V chainsaw. Lightweight- only 3.7Kg -and driven by a powerful 700 W motor, it is kitted with a 4 Ah ePower battery. It can reach up to 14.5 m/s of chain speed with a maximum cutting width of 160 mm, ensuring high quality cuts. Safety is at the highest level thanks to the trigger, the inertial brake and to the tip guard which reduces the risk of kickback. Designed with two ergonomic handles, side and rear, you can care for your garden in a more comfortable and easy way. The chain can be easily tensioned, thanks to the STIGA quick tensioning system.
WARNING: This chainsaw is for use by trained tree service operators only. Use without proper training can result in severe injuries.
Safety first
Placed at the end of the cutting bar, the tip guard reduces the risk of kickback.
Easy and comfortable to use
No muscular fatigue. The weight of this STIGA Essential chainsaw is only 3.7Kg - well balanced and light.
Specification
POWER
Voltage 20 Volt
Battery capacity 4 Ah
Power 0.7 kW
Power source Lithium-ion battery
ePower Yes
Battery kit Included
Motor type Brushless
Maximum motor speed 7500 rpm
Overload protection Yes
Lithium battery nominal energy 72 Wh
Working time (+/- 20%) 20 m
CUTTING SYSTEM
Bar type Sprocket nose
Bar length 25 cm
Bar length (inches) 10 in
Chain type 3/8''(3/8LP-043-40DL)
Chain speed 14.5 m/s
Chain brake Electronic + Mechanical
Chain oil tank capacity 150 ml
Chain oil pump Automatic

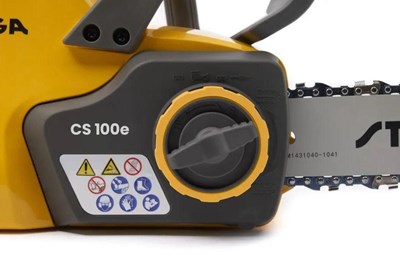

Chain tensioning system Quick side tensioning
EQUIPMENT
Handle type Rear handle
Soft grip handle Yes
TOOLS KIT
Battery charger Single standard
Battery charger output current 2 A
Battery charger plug type BS (Type G)
VIBRATION AND NOISE DATA
Guaranteed sound power level (LwA) - dB(A) 101
Measured sound power level dB(A) 97.5
Measured sound pressure level at operator ear dB(A) 86.5
OVERALL DIMENSIONS
Pack weight 4.92 kg
Product weight without battery 2.96 kg
Weight 3.65 kg
Product weight without bar and chain 2.36 kg
Product length 660 mm
Product width 230 mm
Product height 220 mm
