ISEKI SXG324+ with 48" Rear Discharge Deck, High Dump Collector(SXG324-48HT)

ISEKI SXG324+ with 48
ISEKI SXG324+ with 48ISEKI SXG324+ with 48ISEKI SXG324+ with 48ISEKI SXG324+ with 48ISEKI SXG324+ with 48ISEKI SXG324+ with 48
Iseki

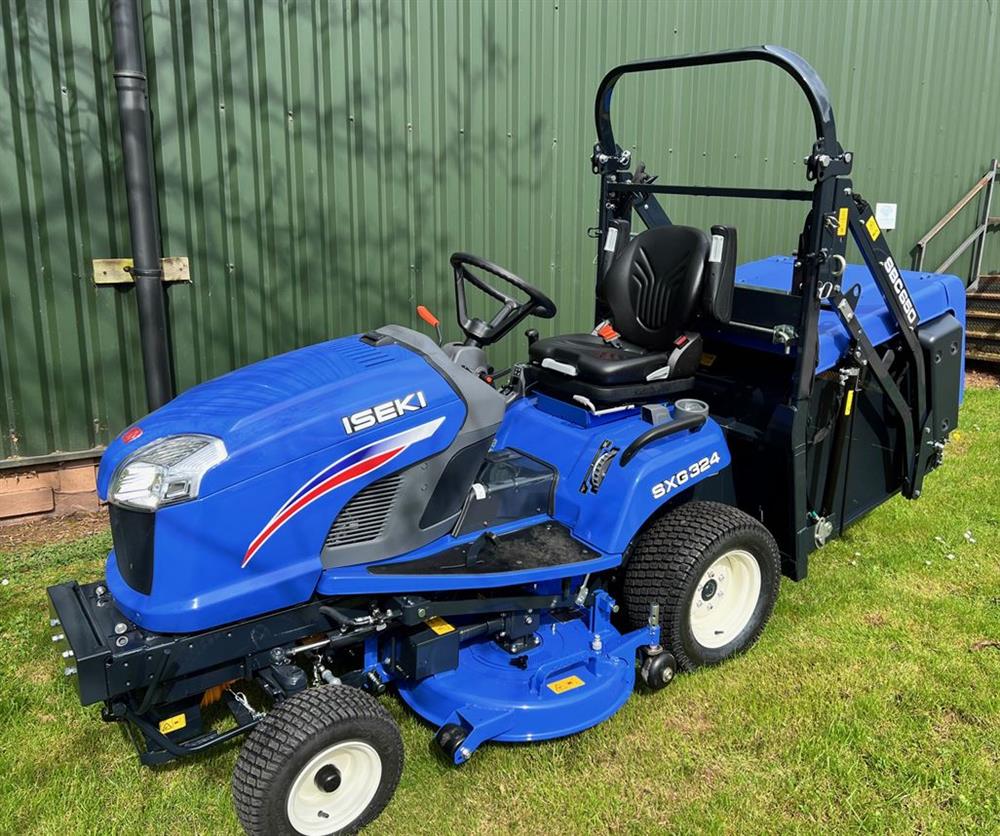

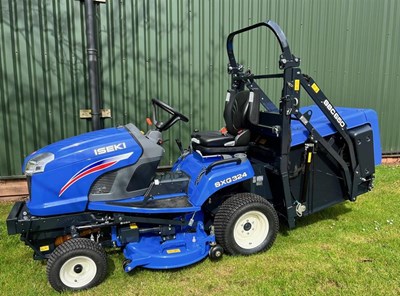

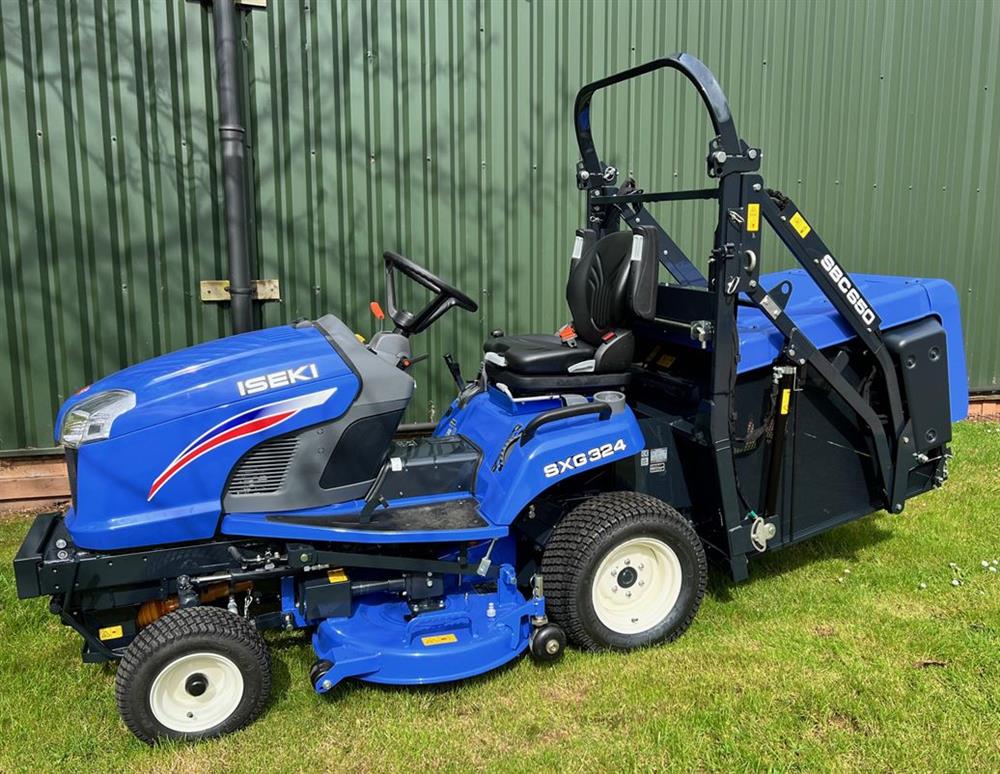

The SXG 324+ is available as a Garden or a Road Homologated models, featuring a 1123cc 14.6kW (20HP) ISEKI 3 cylinder, clean burn, liquid cooled, diesel engine with a 21L fuel tank. Standard equipment includes: 2-pedal hydrostatic transmission system; 2WD with differential lock; hydrostatic power steering and ROPS. Includes a reverse mow switch. Height to top of ROPS 2.14m. Height to top of folded ROPS 1.83m. Turf tyre sizes: F:16x6.50-8 R:23x10.50-12

The large capacity, high torque 1123cc diesel engine is powerful and fuel efficient. The new ergonomic design, increased leg room and dial-in height of cut adjustment all provide excellent operator comfort. The automotive-style instrument panel gives clear information, including a fuel gauge.

Special Features: 14kW (19hp) at 2600rpm 2 pedal hydrostatic drive Easy fill fuel tank, improved engine bay access, wider platform and fenders for safer operation. A Road legal (homologated) version is available. NON Road Homologated Model. (SXG323-48HT)

Free Local Delivery Within 30 Miles by our own Driver to your door fully built and ready to cut grass

Specifications

Power Engine: Type Water-cooled, 4-cycle, diesel, indirect injection

Displacement 1123cc

No of cylinders 3

Power 14.6kW (20 hp) at 2600rpm

Fuel capacity 21ltr (4.6 gal)

Transmission Type HST (Hydrostatic transmission)

Rear axle Chain drive to each wheel

Brakes Type Dry, internal expanding shoe

No. of brakes 1 before diff (garden version) 2 after diff (homologated road legal version)

Tyres Front 16 x 8.50-8

Rear 23 x 10.50-12

Dimensions Length 2140mm (84.3”)

Width 1110mm (43.3”)

Overall height 2140mm (84”) or 1830mm (72”) with ROPS folded

Weight 515kg (1135lbs) Garden model or 520kg (1146 lbs) Homologated model

Centre rear discharge rotary, synchronised blades

Cutting width 1220mm (48”)

Cutting height 25mm (1.0”) - 115mm (4.5”) by pin or 25mm (1.0”) - 90mm (3.5”) by dial

Adjustments 7 stages by pin replacement and stepless dial

Weight Deck 97kg (214lbs), link 8kg (18lbs)

Collector SBC600 X H (high dump)

Capacity 600 litres

Weight 210kg (463 lbs)

Type Blowerless centre collection

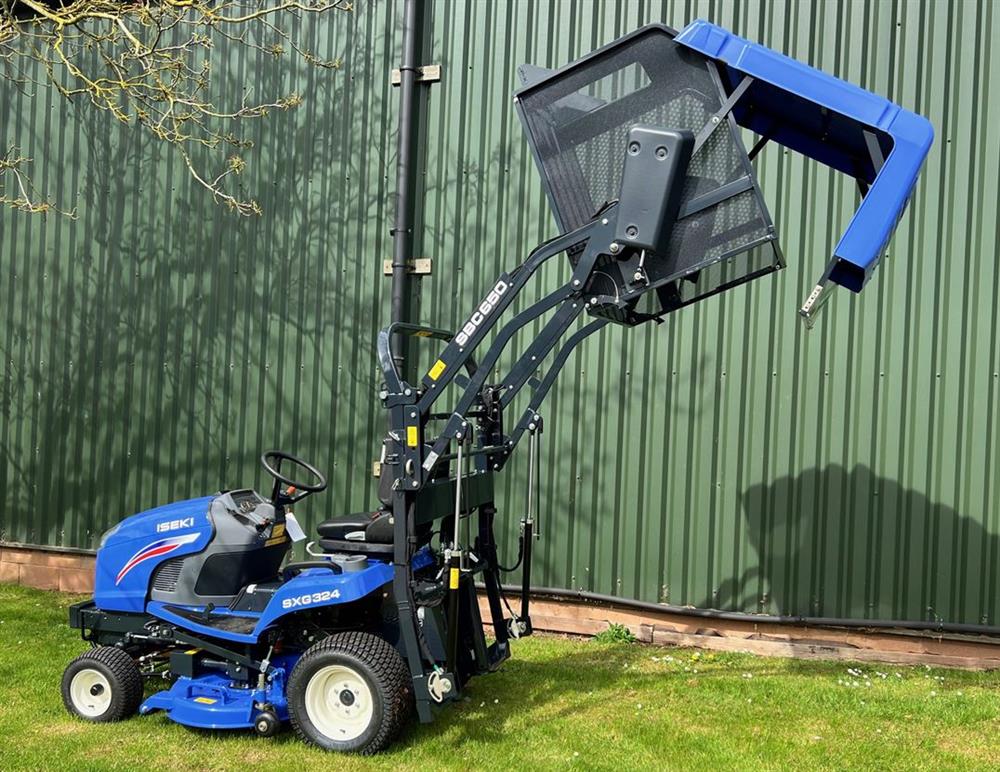

Dump system Hydro High Lift Dump

Weight 115kg (254lbs)
